Why Do Some Double-End Studs Use Different Threads On Each End?

Double-end studs do not always require different thread pitches. The right configuration depends on how each end connects, the required thread engagement, and the assembly process.

When standard thread specifications cannot meet these requirements, a customized stud can provide a better fit for the application.

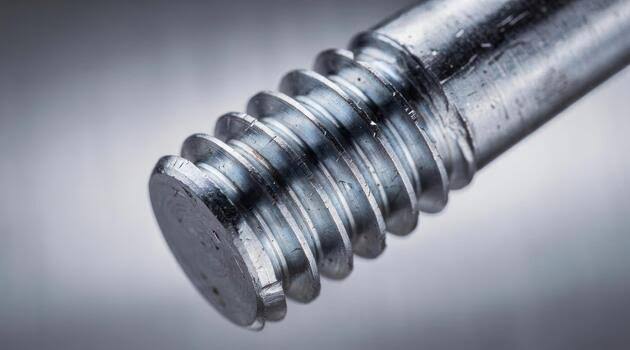

Screw Thread Isometric Stock Photos, Images and Backgrounds for Free Download

A double-end stud typically connects two components through threaded engagement on both sides. The design of each end depends on how the fastener interacts with the mating parts.

In simple applications, both ends may use identical threads. For example, a stud installed between two standard components may not require different specifications.

However, when the two connection points have different requirements, engineers may choose different thread configurations.

One end of the stud may need to be installed into a threaded hole, while the other end may connect with a nut or another component.

These two connections may require different:

Thread engagement lengths

Assembly methods

Installation requirements

Using different thread designs can help optimize the performance of each connection point.

In industrial equipment and machinery, assembly sequence can affect efficiency and reliability.

A customized thread configuration can help define installation direction, improve positioning, and reduce unnecessary adjustments during production.

Thread pitch selection depends on the function of the joint, not simply the fastener type.

Different thread pitches may be considered when applications require different levels of engagement, installation speed, or load distribution.

Some assemblies involve connections between different materials or components with different mechanical characteristics.

A customized thread design can help engineers achieve a more suitable connection for each side of the stud.

In compact assemblies, available space can restrict fastening options. A double-end stud with application-specific thread dimensions may provide a more practical solution compared with modifying surrounding components to fit a standard fastener.

For OEM projects, adapting the fastener design to the application can often reduce assembly challenges during production.

Although thread pitch is an important factor, it is only one element of double-end stud performance.

Engineers also need to consider:

1. Thread Length and Engagement

Insufficient engagement can reduce connection reliability, while excessive length may create installation difficulties.

2. Material and Surface Treatment

The selected material and coating influence corrosion resistance, friction behavior, and long-term durability.

3. Overall Stud Configuration

Diameter, total length, thread direction, and dimensional tolerances all affect whether a stud performs correctly in the final assembly.

A successful fastening solution requires considering the complete application rather than selecting a single specification from a standard catalog.

Standard double-end studs are suitable for many general applications. However, challenges can appear when equipment designs require specific performance requirements.

Common situations include:

1. Assembly Mismatch

Standard dimensions may not provide sufficient thread engagement at both ends.

2. Environmental Requirements

Outdoor or industrial applications may require specific materials or coatings to improve corrosion resistance.

3. Production Efficiency

For automated or high-volume assembly, minor design limitations in a standard fastener can lead to recurring installation issues.

In these cases, custom double-end studs allow manufacturers to optimize the fastener around the actual product design instead of adjusting the product around the available fastener.

Custom double-end studs are often developed when standard solutions cannot fully match engineering requirements.

Customization may involve:

Different thread specifications on each end
Customized thread lengths
Special materials
Specific surface treatments
Application-based dimensional requirements

For OEM and industrial equipment manufacturers, early collaboration with a fastener supplier can help identify suitable designs before production begins.

AYA Fasteners supports custom fastener development through engineering communication, drawing evaluation, manufacturing control, and application-focused solutions. This allows customers to develop fastening components that better match their assembly requirements.

The best double-end stud design is not always the one with the most complex specification. It is the one that matches the connection requirements, production process, and operating environment.

For manufacturers, evaluating thread design early can help prevent assembly issues, reduce unnecessary modifications, and improve long-term product reliability.

As industrial products become more specialized, custom fastening solutions will continue to play an important role in improving manufacturing efficiency and performance.
