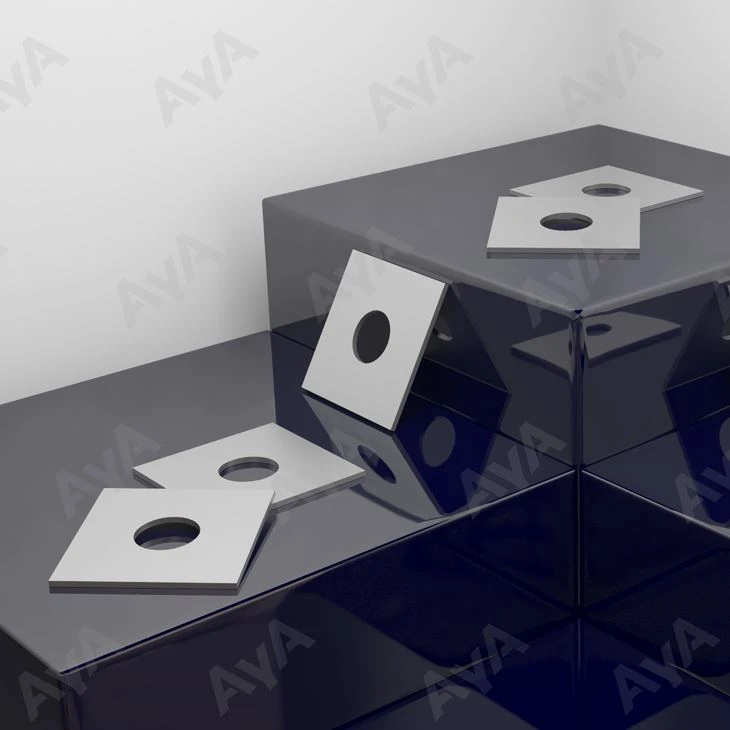

Stainless Steel Square Washer
Standard: DIN 436
Commodity: Stainless Steel Square Washer
Material: Stainless Steel
Property Class: 100 HV10~250 HV10
Diameter: M10、M12、M16、M20、M22、M24、M27、M30、M33、M36、M39、M42、M45、M48、M52
Finish: Plain, Passivated, Customization
Form: Especially For Wood Construction
Alternative Standard: JIS B 1256
MOQ: 1000kgs
Lead Time: 30 to 60 days
Product Introduction
AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of stainless steel square washer in China. Please feel free to buy high quality stainless steel square washer made in China here from our factory. For price consultation, contact us.
As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.
PRODUCT DESCRIPTION
| Product Name | Stainless Steel Square Washer |
| Material | Stainless Steel |
| Standard | DIN 436 |
| Property Class | 100 HV10~250 HV10 |
Diameter | M10、M12、M16、M20、M22、M24、M27、M30、M33、M36、M39、M42、M45、M48、M52 |
| Finish | Plain, Passivated, Customization |
| Form | Especially For Wood Construction |
| Alternative Standard | JIS B 1256 |
DIMENSIONS TABLE
| For Nominal Thread Diameter | M10 | M12 | M16 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 | |
| d | min=nominal size | 11 | 13.5 | 17.5 | 22 | 24 | 26 | 30 | 33 | 36 | 39 | 42 | 45 | 48 | 52 | 56 |
| max | 11.43 | 13.93 | 18.2 | 22.84 | 24.84 | 26.84 | 30.84 | 34 | 37 | 40 | 43 | 46 | 49 | 53.2 | 57.2 | |
| s | max=nominal size | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 95 | 100 | 110 | 125 | 135 | 140 | 150 | 160 |
| min | 28.7 | 38.4 | 48.4 | 58.1 | 68.1 | 78.1 | 87.8 | 92.8 | 97.8 | 107.8 | 122.5 | 132.5 | 137.5 | 147.5 | 157.5 | |
| h | Nominal Size | 3 | 4 | 5 | 5 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 10 | 10 |
| max | 3.6 | 4.6 | 6 | 6 | 7 | 7 | 7 | 7 | 7 | 9.2 | 9.2 | 9.2 | 9.2 | 11.2 | 11.2 | |
| min | 2.4 | 3.4 | 4 | 4 | 5 | 5 | 5 | 5 | 5 | 6.8 | 6.8 | 6.8 | 6.8 | 8.8 | 8.8 | |
| per 1000 units ≈ kg | 20 | 45.7 | 88.7 | 126 | 209 | 275 | 348 | 385 | 423 | 685 | 895 | 1050 | 1120 | 1600 | 1820 | |
PRODUCT DETAILS
PRODUCT ADVANTAGES
ADVANTAGES OF Stainless Steel Square Washer
1. High-quality stainless steel square washers, also called Bevel washers, have a hole in the center and are available in various styles and sizes.
2. They are primarily used in the building and construction sectors to hold the timber together.
3. This washer is also used to spread the tightening load over a larger area.
4. The material is stainless steel, providing corrosion resistance, value and strength.
5. The Company has over nine years of experience in providing the best fastening solution to customers all around the globe.
6. AYA follows a process of quality testing and delivers the products after the complete satisfaction of its engineers
QUALITY INSPECTION
PACKAGING & CONTAINER LOADING
USAGE SCENARIOS
WHY CHOOSE AYA?
