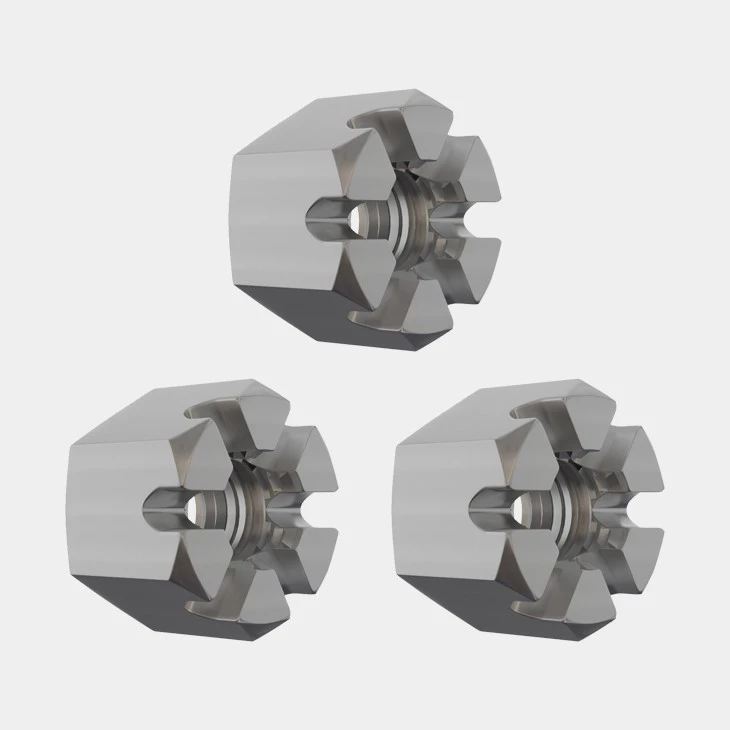

Stainless Steel Castle Nut
Standard: DIN 935-1
Thread Type: Fine Thread
Commodity: Stainless Steel Castle Nut
Also Named: Stainless Castle Nut
Material: Stainless Steel
Property Class:A2(50-80), A4(50-80)
Diameter: 0M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, (M33), M36, (M39), M42, (M45), M48, (M52), M56, (M60), M64, (M68), M72, (M76), M80, (M85), M90, M100
Finish: Plain, Passivated, Customization
Drive Type: External Hex
Alternative Standard: DIN 935-3, JIS B 1170, ANSI B 18.2.4.3M, ASME B 18.2.29
MOQ: 1000kgs
Lead Time: 30 to 60 days
Product Introduction
AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of stainless steel castle nut in China. Please feel free to buy high quality stainless steel castle nut made in China here from our factory. For price consultation, contact us.
As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.
PRODUCT DESCRIPTION
| Product Name | Stainless Steel Castle Nut |
| Also Named | Stainless Castle Nut |
| Material | Stainless Steel |
| Standard | DIN 935-1 |
| Property Class | A2(50-80), A4(50-80) |
| Diameter | M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, (M33), M36, (M39), M42, (M45), M48, (M52), M56, (M60), M64, (M68), M72, (M76), M80, (M85), M90, M100 |
| Finish | Plain, Passivated, Customization |
| Drive Type | External Hex |
| Thread Type | Fine Thread |
| Alternative Standard | DIN 935-3, JIS B 1170, ANSI B 18.2.4.3M, ASME B 18.2.29 |
DIMENSIONS TABLE
| Thread Size | M4 | M5 | M6 | (M7) | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | (M33) | |
| d | |||||||||||||||||
| P | Pitch (Coarse thread) | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 |
| Fine thread-1 | - | - | - | - | 1 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 1.5 | 2 | 2 | 2 | 2 | |
| Fine thread-2 | - | - | - | - | - | 1 | 1.25 | - | - | 2 | 1.5 | 2 | - | - | - | - | |
| da | max | 4.6 | 5.75 | 6.75 | 7.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 19.5 | 21.6 | 23.8 | 25.9 | 29.2 | 32.4 | 35.6 |
| min | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 27 | 30 | 33 | |
| de | max | / | / | / | / | / | / | 16 | 18 | 22 | 25 | 28 | 32 | 34 | 38 | 42 | 46 |
| min | / | / | / | / | / | / | 15.57 | 17.57 | 21.48 | 24.3 | 27.3 | 31 | 33 | 37 | 41 | 45 | |
| dw | min | 5.9 | 6.9 | 8.9 | 9.5 | 11.6 | 14.6 | 16.6 | 19.6 | 22.5 | 24.9 | 27.7 | 31.4 | 33.2 | 38 | 42.7 | 46.6 |
| e | min | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 | 17.77 | 20.03 | 23.35 | 26.75 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 |
| m | max=nominal size | 5 | 6 | 7.5 | 8 | 9.5 | 12 | 15 | 16 | 19 | 21 | 22 | 26 | 27 | 30 | 33 | 35 |
| min | 4.7 | 5.7 | 7.14 | 7.64 | 9.14 | 11.57 | 14.57 | 15.57 | 18.48 | 20.16 | 21.16 | 25.16 | 26.16 | 29.16 | 32 | 34 | |
| w | max | 3.2 | 4 | 5 | 5.5 | 6.5 | 8 | 10 | 11 | 13 | 15 | 16 | 18 | 19 | 22 | 24 | 26 |
| min | 2.9 | 3.7 | 4.7 | 5.2 | 6.14 | 7.64 | 9.64 | 10.57 | 12.57 | 14.57 | 15.57 | 17.57 | 18.48 | 21.48 | 23.48 | 25.48 | |
| m1 | min | 2.3 | 3 | 3.8 | 4.2 | 4.9 | 6.1 | 7.7 | 8.2 | 9.8 | 11.2 | 11.9 | 13.5 | 14.2 | 16.6 | 18.2 | 19.8 |
| n | max | 1.45 | 1.65 | 2.25 | 2.25 | 2.75 | 3.05 | 3.8 | 3.8 | 4.8 | 4.8 | 4.8 | 5.8 | 5.8 | 5.8 | 7.36 | 7.36 |
| min | 1.2 | 1.4 | 2 | 2 | 2.5 | 2.8 | 3.5 | 3.5 | 4.5 | 4.5 | 4.5 | 5.5 | 5.5 | 5.5 | 7 | 7 | |
| s | max=nominal size | 7 | 8 | 10 | 11 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 |
| min | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | |
| Series ② | Split Pin as in DIN EN ISO 1234 | 1x10 | 1.2x12 | 1.6x14 | 1.6x14 | 2x16 | 2.5x20 | 3.2x22 | 3.2x25 | 4x28 | 4x32 | 4x36 | 5x36 | 5x40 | 5x45 | 6.3x50 | 6.3x56 |
| per 1000 units ≈ kg | 1.12 | 2.3 | 3.16 | 3.96 | 7.35 | - | - | - | 38.9 | 57.5 | 75.2 | - | 131 | 192 | 264 | 333 | |
| Thread Size | M36 | (M39) | M42 | (M45) | M48 | (M52) | M56 | (M60) | M64 | (M68) | M72 | (M76) | M80 | (M85) | M90 | M100 | |
| d | |||||||||||||||||
| P | Pitch (Coarse thread) | 4 | 4 | 4.5 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6 | 6 | - | - | - | - | - | - |
| Fine thread-1 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 6 | 6 | 6 | 6 | 6 | 6 | |
| Fine thread-2 | - | - | - | - | - | - | - | - | - | - | 4 | 4 | 4 | 4 | 4 | 4 | |
| da | max | 38.9 | 42.1 | 45.4 | 48.6 | 51.8 | 56.2 | 61 | 64.8 | 69.1 | 73.4 | 77.8 | 82.1 | 86.4 | 91.8 | 97.2 | 108 |
| min | 36 | 39 | 42 | 45 | 48 | 52 | 56 | 60 | 64 | 68 | 72 | 76 | 80 | 85 | 90 | 100 | |
| de | max | 50 | 55 | 58 | 62 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 105 | 110 | 120 | 130 |
| min | 49 | 53.8 | 56.8 | 60.8 | 63.8 | 68.8 | 73.8 | 78.8 | 83.6 | 88.6 | 93.6 | 98.6 | 103.6 | 108.6 | 118.6 | 128.4 | |
| dw | min | 51.1 | 55.9 | 60.6 | 64.7 | 69.4 | 74.2 | 78.7 | 83.4 | 88.2 | 92.9 | 97.7 | 102.4 | 107.2 | 111.9 | 121.1 | 135.4 |
| e | min | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | 93.56 | 99.21 | 104.86 | 110.51 | 116.16 | 121.81 | 127.46 | 133.11 | 144.08 | 161.02 |
| m | max=nominal size | 38 | 40 | 46 | 48 | 50 | 54 | 57 | 63 | 66 | 69 | 73 | 76 | 79 | 88 | 92 | 100 |
| min | 37 | 39 | 45 | 47 | 49 | 52.8 | 55.8 | 61.8 | 64.8 | 67.8 | 71.8 | 74.8 | 77.8 | 86.6 | 90.6 | 98.6 | |
| w | max | 29 | 31 | 34 | 36 | 38 | 42 | 45 | 48 | 51 | 54 | 58 | 61 | 64 | 68 | 72 | 80 |
| min | 28.48 | 30.28 | 33.38 | 35.38 | 37.38 | 41.38 | 44.38 | 47.38 | 50.26 | 53.26 | 57.26 | 60.26 | 63.26 | 67.26 | 71.26 | 79.26 | |
| m1 | min | 21.9 | 23.5 | 25.9 | 27.5 | 29.1 | 32.3 | 34.7 | 37.1 | 39.3 | 41.7 | 44.9 | 47.3 | 49.7 | 52.9 | 56.1 | 62.5 |
| n | max | 7.36 | 7.36 | 9.36 | 9.36 | 9.36 | 9.36 | 9.36 | 11.43 | 11.43 | 11.43 | 11.43 | 11.43 | 11.43 | 14.43 | 14.43 | 14.43 |
| min | 7 | 7 | 9 | 9 | 9 | 9 | 9 | 11 | 11 | 11 | 11 | 11 | 11 | 14 | 14 | 14 | |
| s | max=nominal size | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 105 | 110 | 115 | 120 | 130 | 145 |
| min | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 | 97.8 | 102.8 | 107.8 | 112.8 | 117.8 | 127.5 | 142.5 | |
| Series ② | Split Pin as in DIN EN ISO 1234 | 6.3x63 | 6.3x71 | 8x71 | 8x80 | 8x80 | 8x90 | 8x100 | 10x100 | 10x100 | 10x112 | 10x112 | 10x125 | 10x140 | 10x140 | 10x140 | 10x160 |
| per 1000 units ≈ kg | 447 | 584 | 710 | 860 | 1060 | 1300 | 1500 | 1800 | 2150 | 2500 | 2900 | 3300 | 3700 | 4100 | 5450 | 7600 | |
| ①, Number of Slots： ≤M39: 6 M42~M68: 8 ≥M72: 10 ②, The split pin lengths have been given for guidance only. ③, Material: a) Steel, Property class: d < 5mm: subject to agreement; 5mm≤d≤39mm: 6,8,10; d > 39mm: subject to agreement. Standard DIN EN ISO 898-2 b) Stainless steel, Property class: d≤20mm: A2-70; 5mm < d≤39mm: A2-50; d > 39mm: subject to agreement. Standard DIN EN ISO 3506-2 c) Non-ferrous metal, Property class (material): CuZn=copper zinc alloy. Standard DIN EN 28839 |
PRODUCT DETAILS
PRODUCT ADVANTAGES
ADVANTAGES OF Stainless Steel Castle Nut
1. You can use this nut with a stud, screw, and bolt, which has a hole drilled through threads.
2. As there are 6 slotted slides, you can pass a cotter pin through its body.
3. You can easily secure the nuts in place and prevent them from getting loose.
4. As these nuts are made of stainless steel, there is no risk of corrosion and rust.
5. These nuts are available in a range of finishes and sizes. Based on your needs, you can choose the right one.
6. AYA Fastener, we will pack the fasteners properly and deliver them to your destination.
