Winged Bolt

Standard: ANSI/ASME B 18.17
Thread Type: UNC Thread
Commodity: Winged Bolt
Also Named: Butterfly Wing Bolts
Material: Carbon Steel
Diameter: 4# Heavy、 6# Light、 6# Heavy、 8# Light、 8# Heavy、 10# Light、 10# Heavy、 12# Light、 12# Heavy、 1/4 Light、 1/4 Regular、 1/4 Heavy、 5/16 Light、 5/16 Regular、 5/16 Heavy、 3/8 Light、 3/8 Regular、 3/8 Heavy、 7/16 Light、 7/16 Heavy、 1/2 Light、 1/2 Heavy、 5/8 Heavy
Finish: Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Wing Form: Edged
Alternative Standard: ANSI/ASME B 18.17、JIS B 1184
MOQ: 1000kgs
Lead Time: 30 to 60 days

Send Inquiry

Product Introduction

AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of winged bolt in China. Please feel free to buy high quality winged bolt made in China here from our factory. For price consultation, contact us.

Winged Bolt-AYA

As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.

PRODUCT DESCRIPTION

Product Name	Winged Bolt
Also Named	Butterfly Wing Bolts
Material	Carbon Steel
Standard	ANSI/ASME B 18.17
Diameter	4# Heavy、 6# Light、 6# Heavy、 8# Light、 8# Heavy、 10# Light、 10# Heavy、 12# Light、 12# Heavy、 1/4 Light、 1/4 Regular、 1/4 Heavy、 5/16 Light、 5/16 Regular、 5/16 Heavy、 3/8 Light、 3/8 Regular、 3/8 Heavy、 7/16 Light、 7/16 Heavy、 1/2 Light、 1/2 Heavy、 5/8 Heavy
Finish	Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Thread Type	UNC Thread
Wing Form	Edged
Alternative Standard	ANSI/ASME B 18.17、JIS B 1184

DIMENSIONS TABLE

Winged Bolt-2D

Thread Size d		4#	6#	6#	8#	8#	10#	10#	12#	12#	1/4	1/4	1/4
Thread Size d		Heavy	Light	Heavy	Light	Heavy	Light	Heavy	Light	Heavy	Light	Regular	Heavy
d		0.1120	0.1380	0.1380	0.1640	0.1640	0.1900	0.1900	0.2160	0.2160	0.2500	0.2500	0.2500
PP		40	32	32	32	32	24 & 32	24 & 32	24	24	20	20	20
s	max	0.72	0.72	0.91	0.91	1.10	0.91	1.10	1.10	1.25	1.10	1.25	1.44
s	min	0.59	0.59	0.78	0.78	0.97	0.78	0.97	0.97	1.12	0.97	1.12	1.31
H	max	0.41	0.41	0.47	0.47	0.57	0.47	0.57	0.57	0.66	0.57	0.66	0.79
H	min	0.28	0.28	0.34	0.34	0.43	0.34	0.43	0.43	0.53	0.43	0.53	0.65
h	max	0.11	0.11	0.14	0.14	0.18	0.14	0.18	0.18	0.21	0.18	0.21	0.24
h	min	0.07	0.07	0.10	0.10	0.14	0.10	0.14	0.14	0.17	0.14	0.17	0.20
d_k	max	0.33	0.33	0.43	0.43	0.50	0.43	0.50	0.50	0.58	0.50	0.58	0.70
d_k	min	0.29	0.29	0.39	0.39	0.45	0.39	0.45	0.45	0.51	0.45	0.51	0.64
k	max	0.14	0.14	0.18	0.18	0.22	0.18	0.22	0.22	0.25	0.22	0.25	0.30
k	min	0.10	0.10	0.14	0.14	0.17	0.14	0.17	0.17	0.20	0.17	0.20	0.26
L	max	0.75	0.75	0.75	0.75	0.75	1.00	1.00	1.00	1.00	1.50	1.50	1.50
L	min	0.25	0.25	0.25	0.38	0.38	0.38	0.38	0.38	0.38	0.50	0.50	0.50

Thread Size d		5/16	5/16	5/16	3/8	3/8	3/8	7/16	7/16	1/2	1/2	5/8
Thread Size d		Light	Regular	Heavy	Light	Regular	Heavy	Light	Heavy	Light	Heavy	Heavy
d		0.3125	0.3125	0.3125	0.3750	0.3750	0.3750	0.4375	0.4375	0.5000	0.5000	0.6250
PP		18	18	18	16	16	16	14	14	13	13	11
s	max	1.25	1.44	1.94	1.44	1.94	2.76	1.94	2.76	1.94	2.76	2.76
s	min	1.12	1.31	1.81	1.31	1.81	2.62	1.81	2.62	1.81	2.62	2.62
H	max	0.66	0.79	1.00	0.79	1.00	1.44	1.00	1.44	1.00	1.44	1.44
H	min	0.53	0.65	0.87	0.65	0.87	1.31	0.87	1.31	0.87	1.31	1.31
h	max	0.21	0.24	0.33	0.24	0.33	0.40	0.33	0.40	0.33	0.40	0.40
h	min	0.17	0.20	0.26	0.20	0.26	0.34	0.26	0.34	0.26	0.34	0.34
d_k	max	0.58	0.70	0.93	0.70	0.93	1.19	0.93	1.19	0.93	1.19	1.19
d_k	min	0.51	0.64	0.86	0.64	0.86	1.13	0.86	1.13	0.86	1.13	1.13
k	max	0.25	0.30	0.39	0.30	0.39	0.55	0.39	0.55	0.39	0.55	0.55
k	min	0.20	0.26	0.35	0.26	0.35	0.51	0.35	0.51	0.35	0.51	0.51
L	max	1.50	1.50	1.50	2.00	2.00	2.00	4.00	4.00	4.00	4.00	4.00
L	min	0.50	0.50	0.50	0.75	0.75	0.75	1.00	1.00	1.00	1.00	1.25

PRODUCT DETAILS

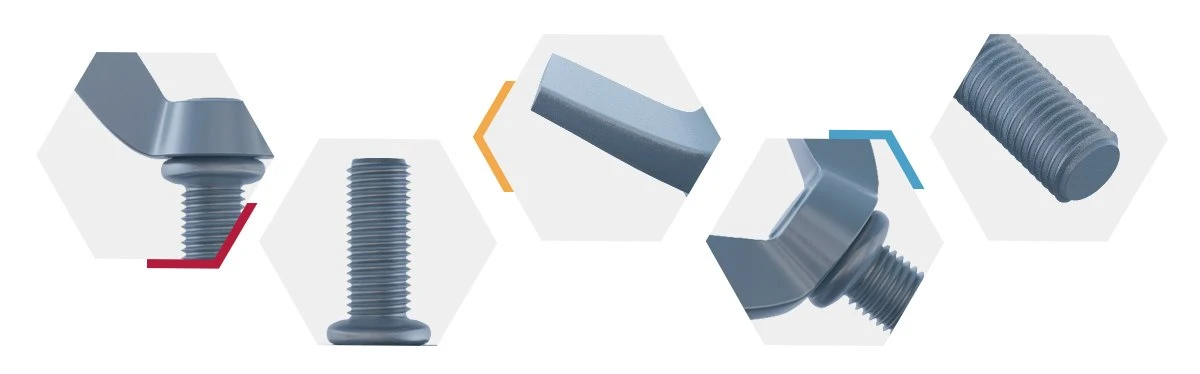

Winged Bolt-detail

PRODUCT ADVANTAGES

Winged Bolt-advantages

ADVANTAGES OF Winged Bolt

1. It can be applied or removed simply by hand without the need of installing drivers.

2. Huge torque is always not needed for the tightening up with this screw.

3. It's made from high-standard raw materials that bring a long service life and low-cost maintenance in the future.

4. It doesn't require any further heat treatment with its current surface situation.

5. AYA has an intelligent digital system for the traceability of the products to ensure the final high-quality products.

6. AYA manufactures winged bolts strictly in terms of ISO9001 or any other international standards required by the customers to ensure the final product's quality.
