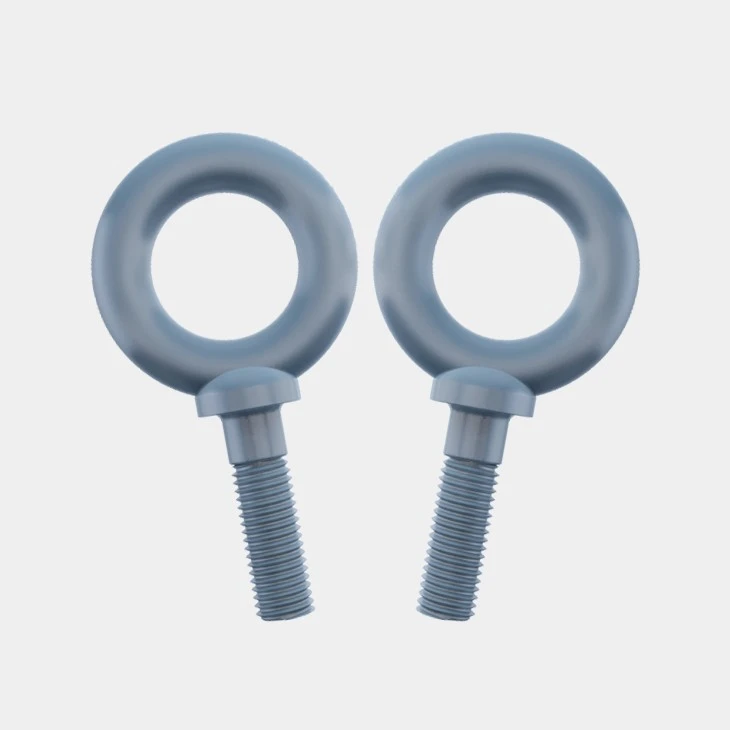

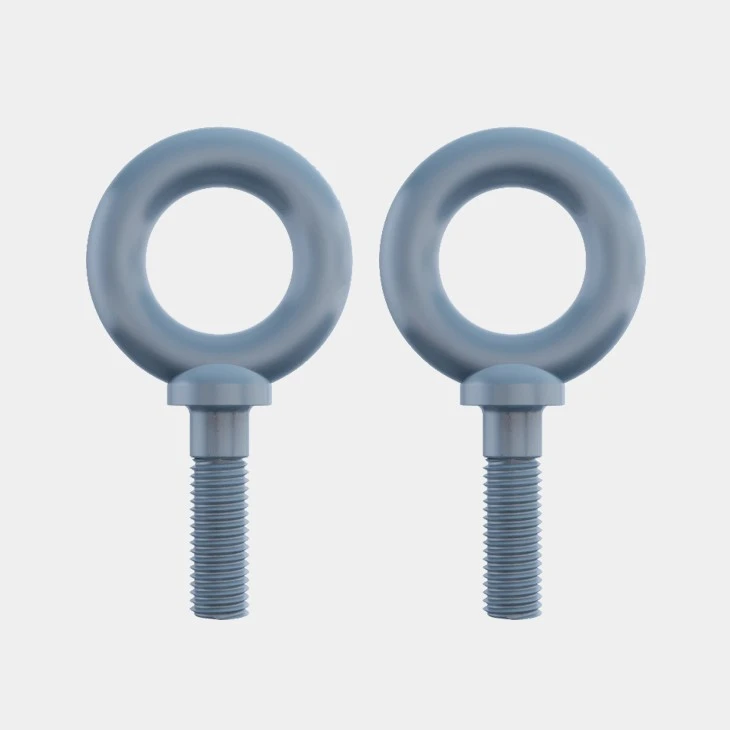

Forged Eye Bolts With Shoulder
Standard: ANSI/ASME B 18.15
Thread Type: Coarse Thread
Commodity: Forged Eye Bolts With Shoulder
Also Named: Threaded Eye Bolts
Material: Carbon Steel
Form: Table 2
Diameter: 1/4, 1/4, 5/16, 5/16, 3/8, 3/8, 7/16, 7/16, 1/2, 1/2, 9/16, 9/16, 5/8, 5/8, 3/4, 3/4, 7/8, 7/8, 1, 1, 1-1/8, 1-1/8, 1-1/4, 1-1/4, 1-1/2, 1-1/2, 1-3/4, 1-3/4, 2, 2
Finish: Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type: With Lifting Eye
Drive Type: With Hand
MOQ: 1000kgs
Lead Time: 30 to 60 days
Product Introduction
AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of forged eye bolts with shoulder in China. Please feel free to buy high quality forged eye bolts with shoulder made in China here from our factory. For price consultation, contact us.
As a global supplier of customized fastening solutions, AYA's senvice process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.
PRODUCT DESCRIPTION
Product Name | Forged Eye Bolts With Shoulder |
Also Named | Threaded Eye Bolts |
Material | Carbon Steel |
Form | Table 2 |
Standard | ANSI/ASME B 18.15 |
Diameter | 1/4, 1/4, 5/16, 5/16, 3/8, 3/8, 7/16, 7/16, 1/2, 1/2, 9/16, 9/16, 5/8, 5/8, 3/4, 3/4, 7/8, 7/8, 1, 1, 1-1/8, 1-1/8, 1-1/4, 1-1/4, 1-1/2, 1-1/2, 1-3/4, 1-3/4, 2, 2 |
Finish | Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated |
Head Type | With Lifting Eye |
Drive Type | With Hand |
Thread Type | Coarse Thread |

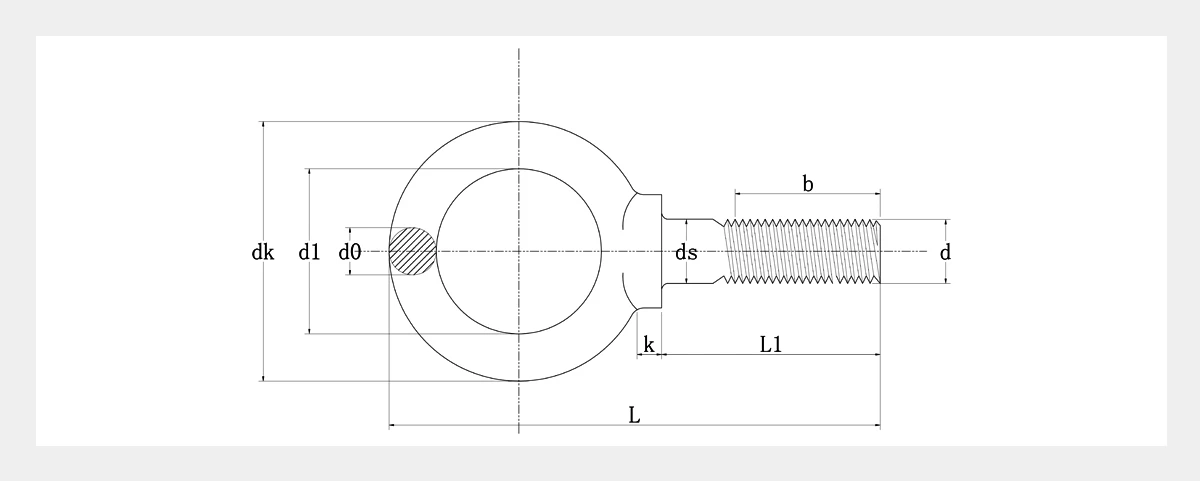

DIMENSIONS TABLE
| Specifications | |||||||||||
| d | 1/4 | 1/4 | 5/16 | 5/16 | 3/8 | 3/8 | 7/16 | 7/16 | 1/2 | 1/2 | |
| ds | 0.25 | 0.28 | 0.31 | 0.34 | 0.38 | 0.41 | 0.44 | 0.47 | 0.5 | 0.53 | |
| L1 | Type A | 1 | 1.06 | 1.12 | 1.19 | 1.25 | 1.38 | 1.38 | 1.5 | 1.5 | 1.62 |
| Type B | 1 | 1.06 | 1.06 | 1.13 | 1.12 | 1.25 | 1.13 | 1.25 | 1.13 | 1.25 | |
| d1 | 0.69 | 0.81 | 0.81 | 0.94 | 0.94 | 1.06 | 1 | 1.12 | 1.12 | 1.25 | |
| dk | 1.19 | 1.19 | 1.44 | 1.44 | 1.69 | 1.69 | 1.81 | 1.81 | 2.12 | 2.12 | |
| d0 | 0.19 | 0.25 | 0.25 | 0.31 | 0.31 | 0.38 | 0.34 | 0.41 | 0.44 | 0.5 | |
| L | 2.22 | 2.53 | 2.66 | 2.97 | 3.09 | 3.47 | 3.41 | 3.78 | 3.81 | 4.19 | |
| b | Type A | 0.75 | 0.75 | 0.81 | 0.81 | 0.88 | 0.88 | 1 | 1 | 1.12 | 1.12 |
| Type B | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | |
| k | 0.12 | 0.19 | 0.12 | 0.19 | 0.12 | 0.19 | 0.19 | 0.25 | 0.19 | 0.25 | |
| d | 9/16 | 9/16 | 5/8 | 5/8 | 3/4 | 3/4 | 7/8 | 7/8 | 1 | 1 | |
| ds | 0.56 | 0.59 | 0.62 | 0.66 | 0.75 | 0.78 | 0.88 | 0.91 | 1 | 1.06 | |
| L1 | Type A | 1.62 | 1.75 | 1.75 | 1.88 | 2 | 2.12 | 2.25 | 2.38 | 2.5 | 2.62 |
| Type B | 1.21 | 1.34 | 1.31 | 1.44 | 1.5 | 1.62 | 1.75 | 1.88 | 1.94 | 2.06 | |
| d1 | 1.19 | 1.31 | 1.31 | 1.44 | 1.44 | 1.56 | 1.56 | 1.69 | 1.69 | 1.81 | |
| dk | 2.25 | 2.25 | 2.56 | 2.56 | 2.81 | 2.81 | 3.19 | 3.19 | 3.56 | 3.56 | |
| d0 | 0.47 | 0.53 | 0.56 | 0.62 | 0.62 | 0.69 | 0.75 | 0.81 | 0.88 | 0.94 | |
| L | 4.19 | 4.56 | 4.56 | 4.94 | 5.06 | 5.5 | 5.75 | 6.19 | 6.44 | 6.88 | |
| b | Type A | 1.25 | 1.25 | 1.38 | 1.38 | 1.62 | 1.62 | 1.81 | 1.81 | 2.08 | 2.08 |
| Type B | 0.84 | 0.84 | 0.94 | 0.94 | 1.12 | 1.12 | 1.31 | 1.31 | 1.5 | 1.5 | |
| k | 0.22 | 0.28 | 0.25 | 0.31 | 0.25 | 0.31 | 0.31 | 0.38 | 0.38 | 0.44 | |
| d | 1-1/8 | 1-1/8 | 1-1/4 | 1-1/4 | 1-1/2 | 1-1/2 | 1-3/4 | 1-3/4 | 2 | 2 | |
| ds | 1.12 | 1.19 | 1.25 | 1.34 | 1.5 | 1.59 | 1.75 | 1.84 | 2 | 2.09 | |
| L1 | Type A | 2.75 | 2.88 | 3 | 3.12 | 3.5 | 3.62 | 3.75 | 3.88 | 4 | 4.12 |
| Type B | 2.13 | 2.26 | 2.38 | 2.5 | 2.75 | 2.87 | 3.18 | 3.31 | 3.62 | 3.79 | |
| d1 | 1.94 | 2.06 | 2.12 | 2.25 | 2.44 | 2.56 | 2.75 | 3 | 3.06 | 3.44 | |
| dk | 4.06 | 4.06 | 4.44 | 4.44 | 5.19 | 5.19 | 6 | 6 | 6.88 | 6.88 | |
| d0 | 1 | 1.06 | 1.09 | 1.16 | 1.31 | 1.38 | 1.5 | 1.62 | 1.75 | 1.88 | |
| L | 7.31 | 7.75 | 8 | 8.44 | 9.22 | 9.72 | 10.5 | 11.12 | 11.53 | 12.22 | |
| b | Type A | 2.31 | 2.31 | 2.5 | 2.5 | 3 | 3 | 3.19 | 3.19 | 3.38 | 3.38 |
| Type B | 1.69 | 1.69 | 1.88 | 1.88 | 2.25 | 2.25 | 2.62 | 2.62 | 3 | 3 | |
| k | 0.44 | 0.5 | 0.5 | 0.56 | 0.5 | 0.62 | 0.5 | 0.62 | 0.62 | 0.75 | |
PRODUCT DETAILS
PRODUCT ADVANTAGES
ADVANTAGES OF Forged Eye Bolts With Shoulder
1. Forged eye bolts with shoulder are designed to withstand forces from directly above or below.
2. Forged eye bolts with shoulder are used as lifting points or anchor points and are one of the most popular types of rigging hardware.
3. Just like slings, sling hooks and shackles, eye bolts come in many different designs and configurations.
4. Threaded Eye Bolts can be used as connection points for rigging, anchoring, pulling, pushing or lifting applications.
5. AYA's product quality inspection is very strict to ensure that customers get the best products.
QUALITY INSPECTION
PACKAGING & CONTAINER LOADING
USAGE SCENARIOS
WHY CHOOSE AYA?
AYA provides exclusive services to 1000+ members from all over the world every year, with a unique chain service solution system, you only need to click the mouse to get exclusive fastening solution and enjoy door-to-door services.
