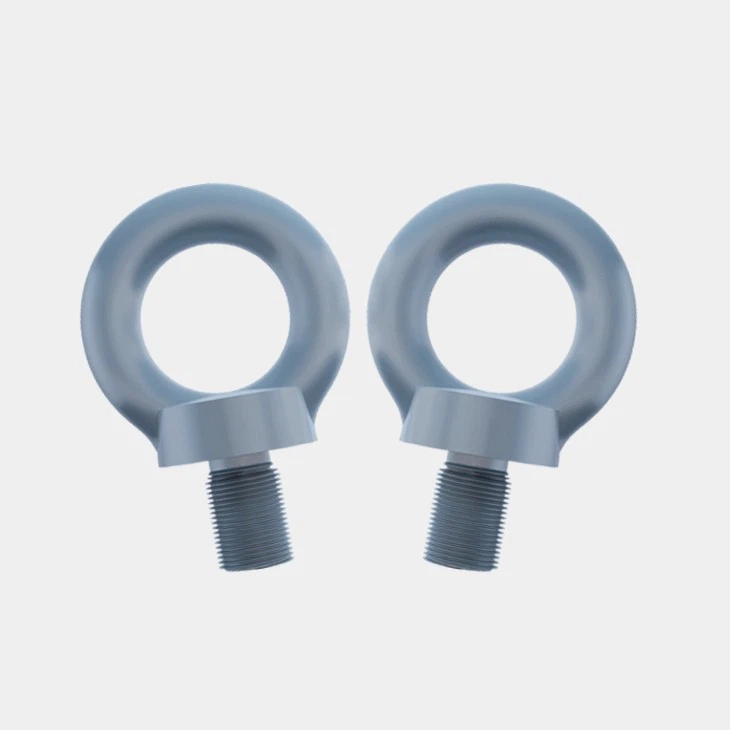

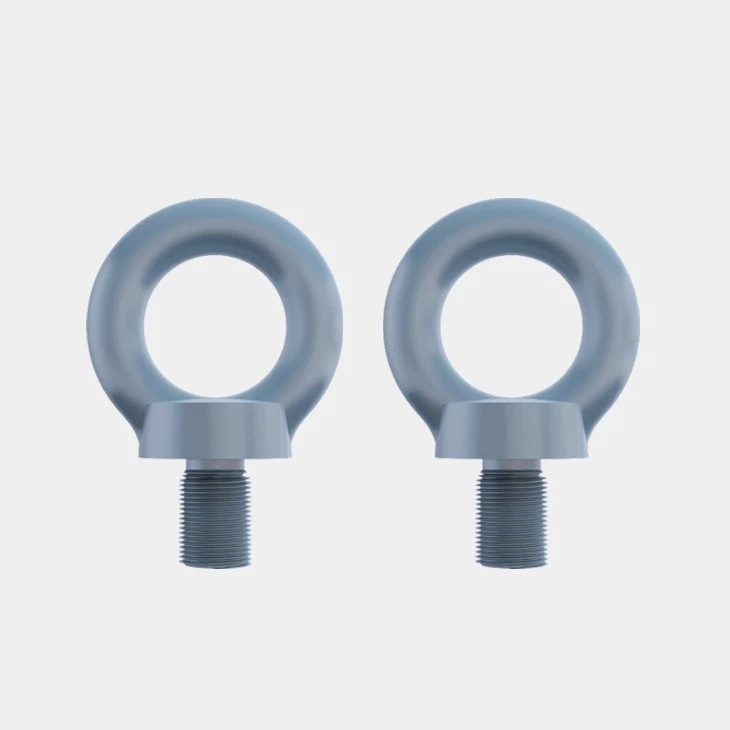

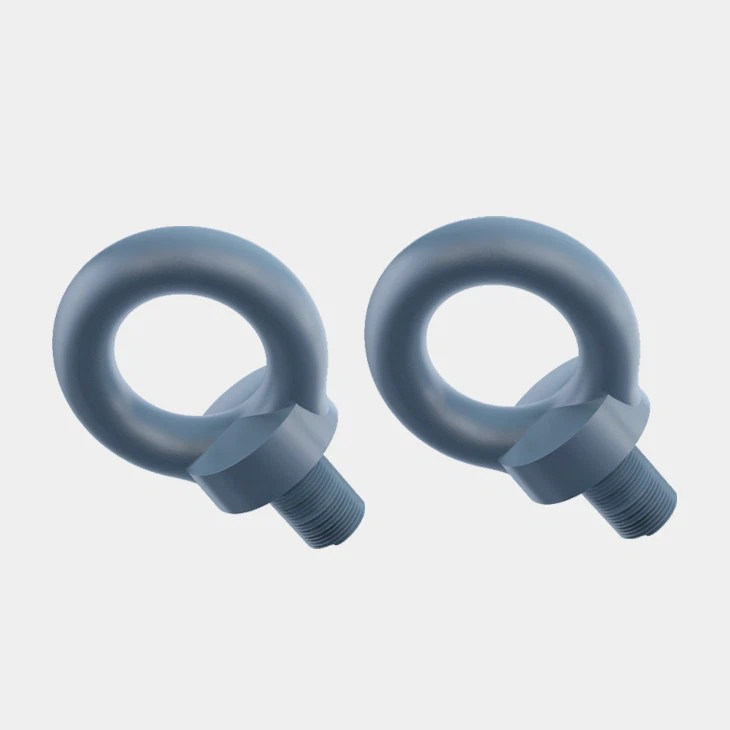

Machinery Eye Bolts

Standard: DIN 580
Thread Type: Coarse Thread
Commodity: Machinery Eye Bolts
Also Named: Steel Eye Screw s
Material: Carbon Steel
Diameter: M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M39, M42, M45, M48, M52, M56, M60, M64, M72×6, M80×6, M100×6
Finish: Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type: With Lifting Eye
Drive Type: With Hand
MOQ: 1000kgs
Lead Time: 30 to 60 days

Send Inquiry

Product Introduction

AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of machinery eye bolts in China. Please feel free to buy high quality machinery eye bolts made in China here from our factory. For price consultation, contact us.

Eye Bolts-AYA Screws

As a global supplier of customized fastening solutions, AYA's senvice process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.

PRODUCT DESCRIPTION

Product Name	Machinery Eye Bolts
Also Named	Steel Eye Screws
Material	Carbon Steel
Standard	DIN 580
Diameter	M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M39, M42, M45, M48, M52, M56, M60, M64, M72×6, M80×6, M100×6
Finish	Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type	With Lifting Eye
Drive Type	With Hand
Thread Type	Coarse Thread

DIMENSIONS TABLE

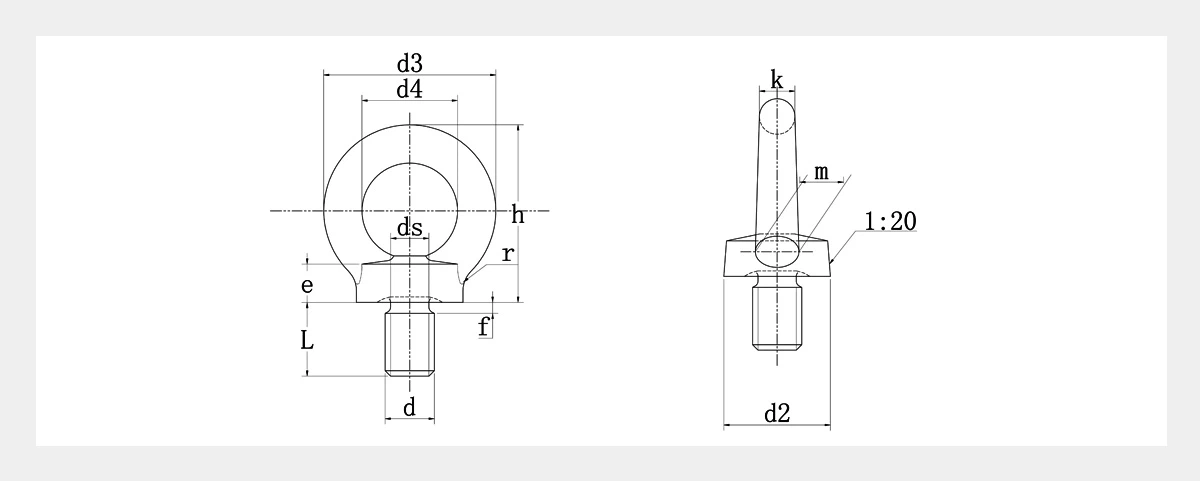

Machinery Eye Bolts 2D

Specifications
d		M6	M8	M10	M12	M14	M16	M18	M20	M22
d		M6	M8	M10	M12	M14	M16	M18	M20	M22
d2	Nominal Size	20	20	25	30	35	35	40	40	50
	min	19.5	19.5	24.5	29.5	34.5	34.5	39.5	39.5	49.4
	max	20.9	20.9	25.9	30.9	36.1	36.1	41.1	41.1	51.2
d3	Nominal Size	36	36	45	54	63	63	72	72	90
	min	35.5	35.5	44.5	53.5	62.5	62.5	71.5	71.5	89.4
	max	37.1	37.1	46.1	55.1	64.1	64.1	73.1	73.1	91.2
d4	Nominal Size	20	20	25	30	35	35	40	40	50
	min	19.1	19.1	24.1	29.1	33.9	33.9	38.9	38.9	48.8
	max	20.5	20.5	25.5	30.5	35.5	35.5	40.5	40.5	50.6
e	Nominal Size	6	6	8	10	12	12	14	14	18
	min	5.5	5.5	7.5	9.5	11.5	11.5	13.5	13.5	17.5
	max	6.9	6.9	8.9	10.9	12.9	12.9	14.9	14.9	19.1
f	max	2.5	2.5	3	3.5	4	4	5	5	6
ds	max=nominal size (h15)	4.4	6	7.7	9.4	11	13	14.4	16.4	18.4
ds	min	4.22	5.82	7.48	9.18	10.73	12.73	14.13	16.13	18.07
h	Nominal Size	36	36	45	53	62	62	71	71	90
	min	35.5	35.5	44.5	52.5	61.5	61.5	70.5	70.5	89.4
	max	37.1	37.1	46.1	54.1	63.1	63.1	72.1	72.1	91.2
k	Nominal Size	8	8	10	12	14	14	16	16	20
	min	7.5	7.5	9.5	11.5	13.5	13.5	15.5	15.5	19.5
	max	8.9	8.9	10.9	12.9	14.9	14.9	16.9	16.9	21.1
L	Nominal Size (js15)	13	13	17	20.5	27	27	30	30	36
	min	12.65	12.65	16.65	20.08	26.58	26.58	29.58	29.58	35.5
	max	13.35	13.35	17.35	20.92	27.42	27.42	30.42	30.42	36.5
m	Nominal Size	10	10	12	14	16	16	19	19	24
	min	9.5	9.5	11.5	13.5	15.5	15.5	18.5	18.5	23.5
	max	10.9	10.9	12.9	14.9	16.9	16.9	19.9	19.9	25.1
r	≈	4	4	4	6	6	6	8	8	12
per unit ≈ kg		0.0572	0.06	0.11	0.18	0.27	0.28	0.438	0.45	0.725
Specifications
d		M24	M27	M30	M33	M36	M39	M42	M45	M48
d		M24	M27	M30	M33	M36	M39	M42	M45	M48
d2	Nominal Size	50	65	65	75	75	85	85	100	100
	min	49.4	64.3	64.3	74.3	74.3	84.3	84.3	99.2	99.2
	max	51.2	66.3	66.3	76.5	76.5	86.5	86.5	101.7	101.7
d3	Nominal Size	90	108	108	126	126	144	144	166	166
	min	89.4	107.3	107.3	125.2	125.2	143.2	143.2	164.9	164.9
	max	91.2	109.5	109.5	127.7	127.7	145.7	145.7	168.1	168.1
d4	Nominal Size	50	60	60	70	70	80	80	90	90
	min	48.8	58.7	58.7	68.5	68.5	78.5	78.5	88.3	88.3
	max	50.6	60.7	60.7	70.7	70.7	80.7	80.7	90.8	90.8
e	Nominal Size	18	22	22	26	26	30	30	35	35
	min	17.5	21.4	21.4	25.3	25.3	29.3	29.3	34.2	34.2
	max	19.1	23.2	23.2	27.3	27.3	31.3	31.3	36.7	36.7
f	max	6	7	7	8	8	9	9	10	10
ds	max=nominal size (h15)	19.6	22.6	25	28	30.3	33.3	35.6	38.6	41
ds	min	19.27	22.29	24.67	27.61	29.91	32.91	35.21	38.21	40.61
h	Nominal Size	90	109	109	128	128	147	147	168	168
	min	89.4	108.3	108.3	127.2	127.2	146.2	146.2	166.9	166.9
	max	91.2	110.5	110.5	129.7	129.7	148.7	148.7	170.1	170.1
k	Nominal Size	20	24	24	28	28	32	32	38	38
	min	19.5	23.4	23.4	27.3	27.3	31.3	31.3	37.2	37.2
	max	21.1	25.2	25.2	29.3	29.3	33.3	33.3	39.7	39.7
L	Nominal Size (js15)	36	45	45	54	54	63	63	68	68
	min	35.5	44.5	44.5	53.5	53.5	62.4	62.4	67.4	67.4
	max	36.5	45.5	45.5	54.5	54.5	63.6	63.6	68.6	68.6
m	Nominal Size	24	28	28	32	32	38	38	46	46
	min	23.5	27.4	27.4	31.3	31.3	37.3	37.3	45.2	45.2
	max	25.1	29.2	29.2	33.3	33.3	39.5	39.5	47.7	47.7
r	≈	12	15	15	18	18	20	20	22	22
per unit ≈ kg		0.74	1.624	1.66	2.596	2.65	3.78	4.03	6.244	6.38
Specifications
d		M52	M56	M60	M64	M72×6	M80×6	M100×6	-	-
d		M52	M56	M60	M64	M72×6	M80×6	M100×6	-	-
d2	Nominal Size	110	110	120	120	150	170	190	-	-
	min	108.9	108.9	118.9	118.9	148.8	168.5	188.5	-	-
	max	112.1	112.1	122.1	122.1	152.4	173	193	-	-
d3	Nominal Size	184	184	206	206	260	296	330	-	-
	min	182.8	182.8	204.8	204.8	258.5	294.3	328.3	-	-
	max	186.4	186.4	208.4	208.4	263	299.3	333.3	-	-
d4	Nominal Size	100	100	110	110	140	160	180	-	-
	min	98.1	98.1	107.9	107.9	137.6	157.3	177	-	-
	max	100.9	100.9	111.1	111.1	141.2	161.3	181.5	-	-
e	Nominal Size	38	38	42	42	50	55	60	-	-
	min	37.1	37.1	41.1	41.1	48.9	53.8	58.8	-	-
	max	39.9	39.9	43.9	43.9	52.1	57.4	62.4	-	-
f	max	11	11	12	12	12	12	12	-	-
ds	max=nominal size (h15)	45	48.3	52.3	55.7	63.7	71.7	91.7	-	-
ds	min	44.54	47.91	51.84	55.24	63.24	71.24	91.16	-	-
h	Nominal Size	187	187	208	208	260	298	330	-	-
	min	185.8	185.8	206.8	206.8	258.5	296.3	328.3	-	-
	max	189.4	189.4	210.4	210.4	263	301.3	333.3	-	-
k	Nominal Size	42	42	48	48	60	68	75	-	-
	min	41.1	41.1	47.1	47.1	58.9	66.8	73.8	-	-
	max	43.9	43.9	49.9	49.9	62.1	70.4	77.4	-	-
L	Nominal Size (js15)	78	78	90	90	100	112	130	-	-
	min	77.4	77.4	89.3	89.3	99.3	111.3	129.2	-	-
	max	78.6	78.6	90.7	90.7	100.7	112.7	130.8	-	-
m	Nominal Size	50	50	58	58	72	80	88	-	-
	min	49.1	49.1	57.1	57.1	70.9	78.8	86.8	-	-
	max	51.9	51.9	59.9	59.9	74.1	82.4	90.4	-	-
r	≈	25	25	25	25	35	35	40	-	-
per unit ≈ kg		8.566	8.8	12.13	12.4	23.3	34.2	49.1	-	-

PRODUCT DETAILS

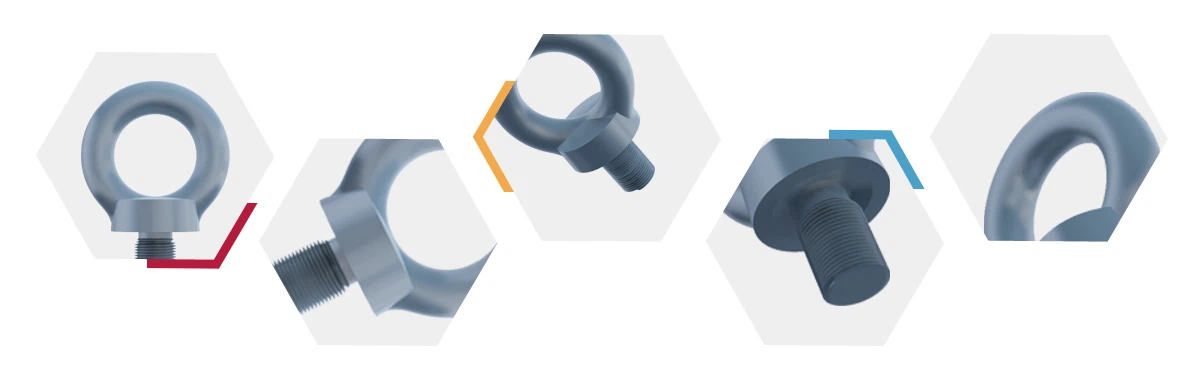

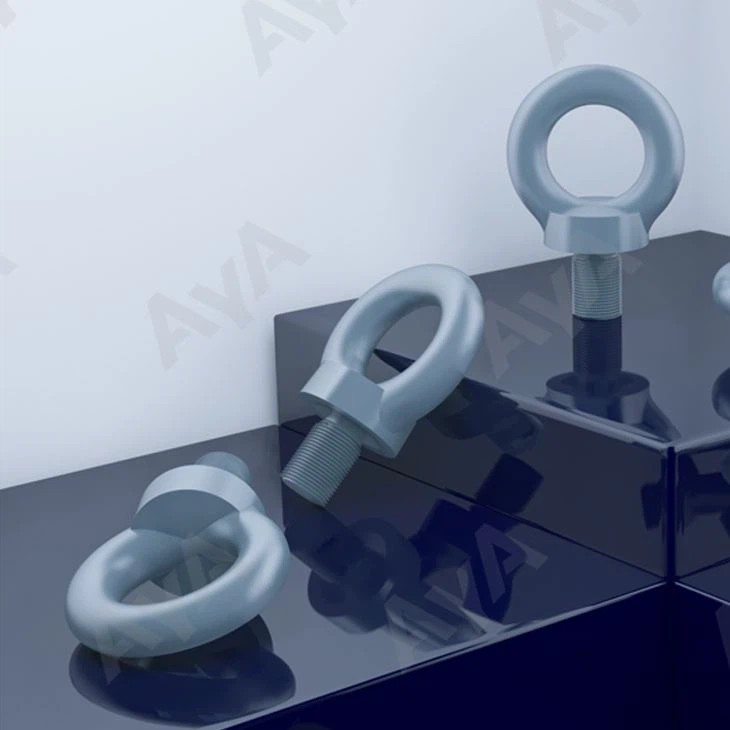

Machinery Eye Bolts details

PRODUCT ADVANTAGES

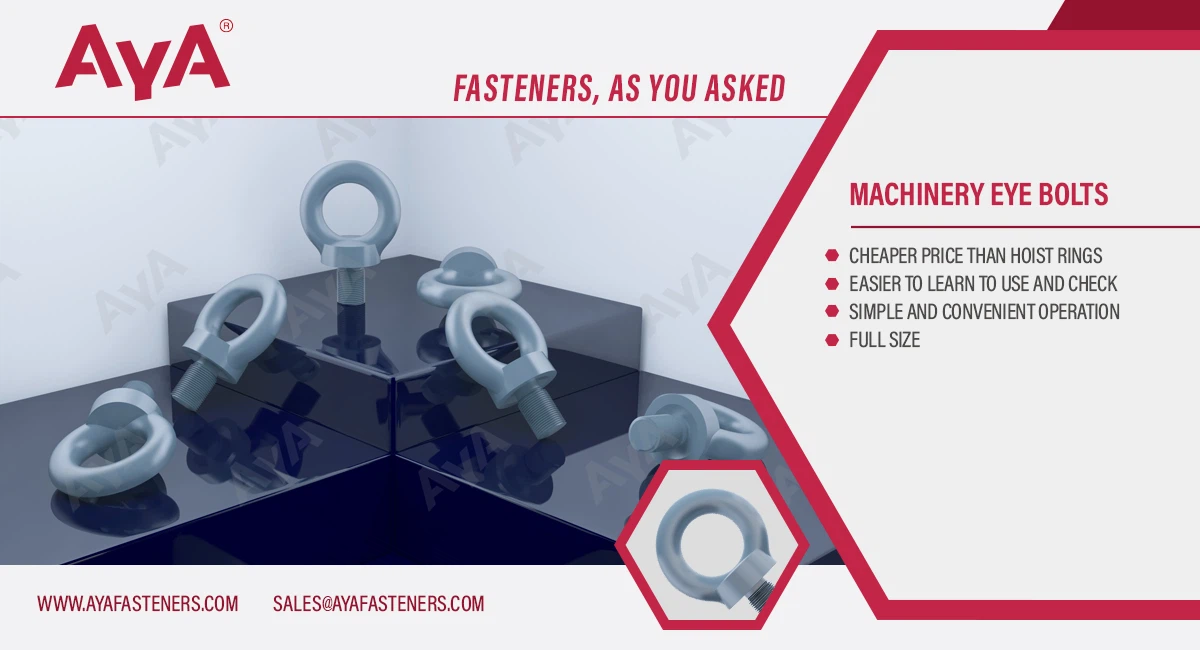

Machinery Eye Bolts advantages

ADVANTAGES OF Machinery Eye Bolts

1. Machinery eye bolts are less expensive than eyebolts.

2. Machinery eye bolts are a simple product with no moving parts.

3. Forged steel eye bolts are relatively easy to learn how to use and visually inspect.

4. Machinery eye bolts are commonly used to screw into equipment components to serve as lifting points.

5. AYA has a wide range of screws sizes to meet most needs.
