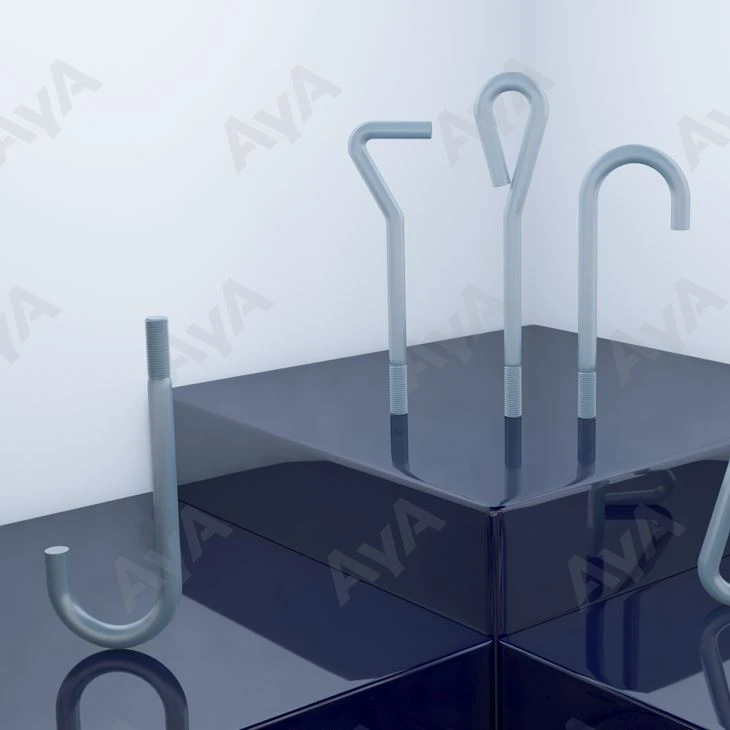

Steel Foundation Bolts
Standard: DIN 529
Thread Type: Coarse Thread/ Partial Thread
Commodity: Steel Foundation Bolts
Also Named: Foundation Bolts In Concrete
Material: Carbon Steel
Property Class: 4.6
Diameter: M8, M10, M12, M16, M20, M24, M30, M36, M42, M48, M56, M64, M72
Finish: Plain/ Black Oxide/ Zinc Plated/ Hot Dipped Galvanized/ Dacromet/ Phosphating/ Cadmium Electroplate/ Nickel Plated
MOQ: 1000kgs
Lead Time: 30 to 60 days
Product Introduction
AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of steel foundation bolts in China. Please feel free to buy high quality steel foundation bolts made in China here from our factory. For price consultation, contact us.
As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.
Product Description
Standard | DIN 529 |
Thread Type | Coarse Thread / Partial Thread |
Commodity | Steel Foundation Bolts |
Also Named | Foundation Bolts In Concrete |
Material | Carbon Steel |
Diameter | M8, M10, M12, M16, M20, M24, M30, M36, M42, M48, M56, M64, M72 |
Finish | Plain/ Black Oxide/ Zinc Plated/ Hot Dipped Galvanized/ Dacromet/ Phosphating/ Cadmium Electroplate/ Nickel Plated |
MOQ | 1000kgs |
Lead Time | 30 to 60 days |
| Screw Thread d | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 | M56 | M64 | M72 | |
| P | Thread Pitch | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6 |
| b | max | 22.5 | 28 | 33.5 | 44 | 55 | 66 | 82 | 98 | 114 | 130 | 151 | 172 | 192 |
| min=nominal size | 20 | 25 | 30 | 40 | 50 | 60 | 75 | 90 | 105 | 120 | 140 | 160 | 180 | |
| a | max | 25 | 32 | 40 | 55 | 65 | 80 | 100 | 120 | 140 | 160 | 185 | 210 | 250 |
| c | max | 55 | 55 | 70 | 90 | 110 | 130 | 160 | 190 | 230 | 260 | 290 | 340 | 370 |
| e | min | 35 | 45 | 55 | 70 | 85 | 100 | 120 | 140 | 160 | 180 | 210 | 250 | 290 |
| ①,The shape inside the dotted line can be selected according to your needs. ②,Chamfered end (CH) or Rounded end (RN)（DIN EN ISO 4753） ③,Shank diameter = thread diameter (full shank) or ≈ pitch diameter (thin shank) as chosen by the manufacturer. ④,Material: Steel, Strength class (material): 4.6 Standard: DIN EN ISO 898-1 | ||||||||||||||
Product Details
Product Advantages
Advantages Of Steel Foundation Bolts
1. Foundation bolt is a steel product in the form of a rod with a threaded part, consisting of a metal rod and a special device that holds the foundation bolt inside the foundation.
2. Steel foundation bolts provide a strong and durable solution to connect both structural and non-structural elements to concrete material.
3. Concrete foundation bolts are available in several different styles and size configurations to fit a variety of applications.
4. They feature a head stamp for easy identification after the concrete is poured.
5. It is used for fastening structures in the construction of residential buildings, industrial buildings, roads, etc.
6. At AYA you can choose and buy foundation bolts for your needs.
Quality Inspection
We focus on quality and have an experienced QC team to supervise each production step.
Experienced QC staff can provide customers with accurate quality inspection reports.
Packaging & Container Loading
AYA's design team can meet customers' unique needs for labels.
Automated packing lines improve the quality and speed of the packaging work.
Usage Scenarios
Why Choose AYA?
AYA provides exclusive services to 1000+ members from all over the world every year, with a unique chain service solution system, you only need to click the mouse to get exclusive fastening solution and enjoy door-to-door services.
