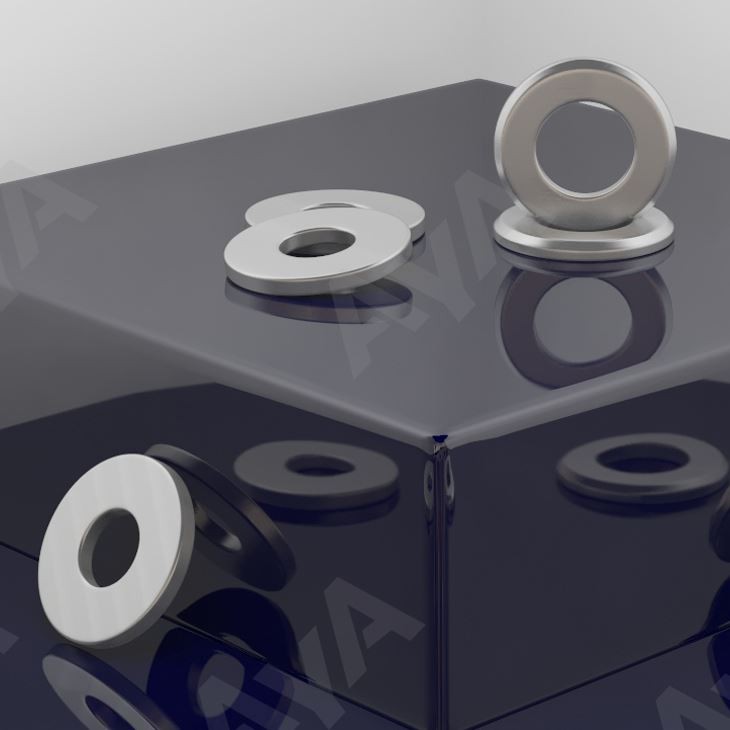

Stainless Steel Flat Washer
Standard: DIN 125-1
Commodity: Stainless Steel Flat Washers
Material: Stainless Steel
Property Class: 140HV(HV140-250) / 200HV(HV200-250)
Diameter: Φ1.7、Φ1.8、Φ2.2、Φ2.5、Φ2.7、Φ2.8、Φ3.2、Φ3.7、Φ4.3、Φ5.3、Φ6.4、Φ7.4、Φ8.4、Φ10.5、Φ13、Φ15、Φ17、Φ19、Φ21、Φ23、Φ25、Φ27、Φ28、Φ29、Φ31、Φ33、Φ34、Φ36、Φ37、Φ39、Φ40、Φ41、Φ43、Φ46、Φ50、Φ52、Φ54、Φ57、Φ58、Φ60、Φ62、Φ66、Φ70、Φ74、Φ78、Φ82、Φ87、Φ93、Φ98、Φ104、Φ109、Φ114、Φ119、Φ124、Φ129、Φ134、Φ139、Φ144、Φ149、Φ155、Φ165
Finish: Plain, Passivated, Customization
Form: Form A / Form B
Alternative Standard: DIN 125-2、DIN 1052、ISO 887、ISO 7089、ISO 8738、ANSI B 18.22M、ANSI B 18.22.1、ANSI/ASME B 18.21.1、JIS B 1256、JIS B 1258
MOQ: 1000kgs
Lead Time: 30 to 60 days
Product Introduction
AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of stainless steel flat washer in China. Please feel free to buy high quality stainless steel flat washer made in China here from our factory. For price consultation, contact us.
As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.
PRODUCT DESCRIPTION
| Product Name | Stainless Steel Flat Washers |
| Material | Stainless Steel |
| Standard | DIN 125-1 |
| Property Class | 140HV(HV140-250) / 200HV(HV200-250) |
| Form | Form A / Form B |
Diameter | Φ1.7、Φ1.8、Φ2.2、Φ2.5、Φ2.7、Φ2.8、Φ3.2、Φ3.7、Φ4.3、Φ5.3、Φ6.4、Φ7.4、Φ8.4、Φ10.5、Φ13、Φ15、Φ17、Φ19、Φ21、Φ23、Φ25、Φ27、Φ28、Φ29、Φ31、Φ33、Φ34、Φ36、Φ37、Φ39、Φ40、Φ41、Φ43、Φ46、Φ50、Φ52、Φ54、Φ57、Φ58、Φ60、Φ62、Φ66、Φ70、Φ74、Φ78、Φ82、Φ87、Φ93、Φ98、Φ104、Φ109、Φ114、Φ119、Φ124、Φ129、Φ134、Φ139、Φ144、Φ149、Φ155、Φ165 |
| Finish | Plain, Passivated, Customization |
| Alternative Standard | DIN 125-2、DIN 1052、ISO 887、ISO 7089、ISO 8738、ANSI B 18.22M、ANSI B 18.22.1、ANSI/ASME B 18.21.1、JIS B 1256、JIS B 1258 |
DIMENSIONS TABLE
| Size | Φ1.7 | Φ1.8 | Φ2.2 | Φ2.5 | Φ2.7 | Φ2.8 | Φ3.2 | Φ3.7 | Φ4.3 | Φ5.3 | Φ6.4 | Φ7.4 | Φ8.4 | Φ10.5 | Φ13 | Φ15 | |
| M | For thread size | M1.6 | M1.7 | M2 | M2.3 | M2.5 | M2.6 | M3 | M3.5 | M4 | M5 | M6 | M7 | M8 | M10 | M12 | M14 |
| d | min=nominal size | 1.7 | 1.8 | 2.2 | 2.5 | 2.7 | 2.8 | 3.2 | 3.7 | 4.3 | 5.3 | 6.4 | 7.4 | 8.4 | 10.5 | 13 | 15 |
| max | 1.84 | 1.94 | 2.34 | 2.64 | 2.84 | 2.94 | 3.38 | 3.88 | 4.48 | 5.48 | 6.62 | 7.62 | 8.62 | 10.77 | 13.27 | 15.27 | |
| dc | max=nominal size | 4 | 4.5 | 5 | 6 | 6 | 7 | 7 | 8 | 9 | 10 | 12 | 14 | 16 | 20 | 24 | 28 |
| min | 3.7 | 4.2 | 4.7 | 5.7 | 5.7 | 6.64 | 6.64 | 7.64 | 8.64 | 9.64 | 11.57 | 13.57 | 15.57 | 19.48 | 23.48 | 27.48 | |
| h | Nominal Size | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.8 | 1 | 1.6 | 1.6 | 1.6 | 2 | 2.5 | 2.5 |
| max | 0.35 | 0.35 | 0.35 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.9 | 1.1 | 1.8 | 1.8 | 1.8 | 2.2 | 2.7 | 2.7 | |
| min | 0.25 | 0.25 | 0.25 | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 | 0.7 | 0.9 | 1.4 | 1.4 | 1.4 | 1.8 | 2.3 | 2.3 | |
| per 1000 units ≈ kg | 0.024 | 0.031 | 0.037 | 0.092 | 0.088 | 0.127 | 0.119 | 0.155 | 0.308 | 0.443 | 1.02 | 1.39 | 1.83 | 3.57 | 6.27 | 8.62 | |
| Size | Φ17 | Φ19 | Φ21 | Φ23 | Φ25 | Φ27 | Φ28 | Φ29 | Φ31 | Φ33 | Φ34 | Φ36 | Φ37 | Φ39 | Φ40 | Φ41 | |
| M | For thread size | M16 | M18 | M20 | M22 | M24 | M26 | M27 | M28 | M30 | M32 | M33 | M35 | M36 | M38 | M39 | M40 |
| d | min=nominal size | 17 | 19 | 21 | 23 | 25 | 27 | 28 | 29 | 31 | 33 | 34 | 36 | 37 | 39 | 40 | 41 |
| max | 17.27 | 19.33 | 21.33 | 23.33 | 25.33 | 27.33 | 28.33 | 29.33 | 31.39 | 33.62 | 34.62 | 36.62 | 37.62 | 39.62 | 40.62 | 41.62 | |
| dc | max=nominal size | 30 | 34 | 37 | 39 | 44 | 50 | 50 | 50 | 56 | 60 | 60 | 66 | 66 | 72 | 72 | 72 |
| min | 29.48 | 33.38 | 36.38 | 38.38 | 43.38 | 49.38 | 49.38 | 49.38 | 55.26 | 58.8 | 58.8 | 64.8 | 64.8 | 70.8 | 70.8 | 70.8 | |
| h | Nominal Size | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 5 | 5 | 5 | 5 | 6 | 6 | 6 |
| max | 3.3 | 3.3 | 3.3 | 3.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 5.6 | 5.6 | 5.6 | 5.6 | 6.6 | 6.6 | 6.6 | |
| min | 2.7 | 2.7 | 2.7 | 2.7 | 3.7 | 3.7 | 3.7 | 3.7 | 3.7 | 4.4 | 4.4 | 4.4 | 4.4 | 5.4 | 5.4 | 5.4 | |
| per 1000 units ≈ kg | 11.3 | 14.7 | 17.2 | 18.3 | 32.3 | 43.7 | 42.3 | 40.9 | 53.6 | 77.4 | 75.3 | 94.3 | 92.1 | 136 | 133 | 130 | |
| Size | Φ43 | Φ46 | Φ50 | Φ52 | Φ54 | Φ57 | Φ58 | Φ60 | Φ62 | Φ66 | Φ70 | Φ74 | Φ78 | Φ82 | Φ87 | Φ93 | |
| M | For thread size | M42 | M45 | M48 | M50 | M52 | M55 | M56 | M58 | M60 | M64 | M68 | M72 | M76 | M80 | M85 | M90 |
| d | min=nominal size | 43 | 46 | 50 | 52 | 54 | 57 | 58 | 60 | 62 | 66 | 70 | 74 | 78 | 82 | 87 | 93 |
| max | 43.62 | 46.62 | 50.62 | 52.74 | 54.74 | 57.74 | 58.74 | 60.74 | 62.74 | 66.74 | 70.74 | 74.74 | 78.74 | 82.87 | 87.87 | 93.87 | |
| dc | max=nominal size | 78 | 85 | 92 | 92 | 98 | 105 | 105 | 110 | 110 | 115 | 120 | 125 | 135 | 140 | 145 | 160 |
| min | 76.8 | 83.6 | 90.6 | 90.6 | 96.6 | 103.6 | 103.6 | 108.6 | 108.6 | 113.6 | 118.6 | 123.4 | 133.4 | 138.4 | 143.4 | 158.4 | |
| h | Nominal Size | 7 | 7 | 8 | 8 | 8 | 9 | 9 | 9 | 9 | 9 | 10 | 10 | 10 | 12 | 12 | 12 |
| max | 8 | 8 | 9 | 9 | 9 | 10 | 10 | 10 | 10 | 10 | 11 | 11 | 11 | 13.2 | 13.2 | 13.2 | |
| min | 6 | 6 | 7 | 7 | 7 | 8 | 8 | 8 | 8 | 8 | 9 | 9 | 9 | 10.8 | 10.8 | 10.8 | |
| per 1000 units ≈ kg | 183 | 220 | 294 | 284 | 330 | 431 | 425 | 472 | 458 | 492 | 586 | 626 | 749 | 953 | 996 | 1250 | |
| Size | Φ98 | Φ104 | Φ109 | Φ114 | Φ119 | Φ124 | Φ129 | Φ134 | Φ139 | Φ144 | Φ149 | Φ155 | Φ165 | |
| M | For thread size | M95 | M100 | M105 | M110 | M115 | M120 | M125 | M130 | M135 | M140 | M145 | M150 | M160 |
| d | min=nominal size | 98 | 104 | 109 | 114 | 119 | 124 | 129 | 134 | 139 | 144 | 149 | 155 | 165 |
| max | 98.87 | 104.87 | 109.87 | 114.87 | 119.87 | 125 | 130 | 135 | 140 | 145 | 150 | 156 | 166 | |
| dc | max=nominal size | 165 | 175 | 180 | 185 | 200 | 210 | 220 | 220 | 230 | 240 | 250 | 250 | 250 |
| min | 163.4 | 173.4 | 178.4 | 183.15 | 198.15* | 208.15 | 218.15 | 218.15 | 228.15 | 238.15 | 248.15 | 248.15 | 248.15 | |
| h | Nominal Size | 12 | 14 | 14 | 14 | 14 | 16 | 16 | 16 | 16 | 18 | 18 | 18 | 18 |
| max | 13.2 | 15.2 | 15.2 | 15.2 | 15.2 | 17.2 | 17.2 | 17.2 | 17.2 | 19.2 | 19.2 | 19.2 | 19.2 | |
| min | 10.8 | 12.8 | 12.8 | 12.8 | 12.8 | 14.8 | 14.8 | 14.8 | 14.8 | 16.8 | 16.8 | 16.8 | 16.8 | |
| per 1000 units ≈ kg | 1300 | 1710 | 1770 | 1830 | 2230 | 2830 | 3130 | 3000 | 3310 | 4090 | 4470 | 4270 | 3910 | |
| ①,In the standard text, φ119 corresponds to the dc minimum value of 188.15, but the corresponding deviation here should be 1.85 mm, that is, the actual minimum value is 200-1.85=198.15 mm. (In DIN 522, when h is less than 4 and the product grade is Class A, the dimensional tolerance of d2 is h15, and the corresponding deviation is 1.85 mm when dc is 200 mm). ②,Material： 1）steel , hardness class 140HV, hardness HV140-250；hardness class 200HV, hardness HV200-250； 2）stainless steel , hardness class 140HV, hardness HV140-250；hardness class 200HV, hardness HV200-250；material (steel group) A2 and A4, F1, C1 and C4 3）Washers may be made of non-ferrous metals or other materials, SUbject to agreemen 4）For h not exceeding 0,5 mm, the hardness shall be HV 2 and for h exceeding 0,5 mm, HV 10. | ||||||||||||||
PRODUCT DETAILS
PRODUCT ADVANTAGES
ADVANTAGES OF Stainless Steel Flat Washers
1. High-quality stainless steel standard washers with holes punched in the center, available in different sizes and thicknesses.
2. They are generally used to protect the surface from damage during installation.
3. These flat washers increase the screw-bearing surface area, increase the fastener strength, and prevent the sinking of bearing surfaces.
4. The material stainless steel provides corrosion resistance and extra strength.
5. AYA is globally famous for supplying customized fastening solutions.
6. The Company leaves no stone unturned in finding solutions to its customer's problems. AYA provides the customer with a comprehensive and durable fastening solution.
QUALITY INSPECTION
PACKAGING & CONTAINER LOADING
USAGE SCENARIOS
WHY CHOOSE AYA?
