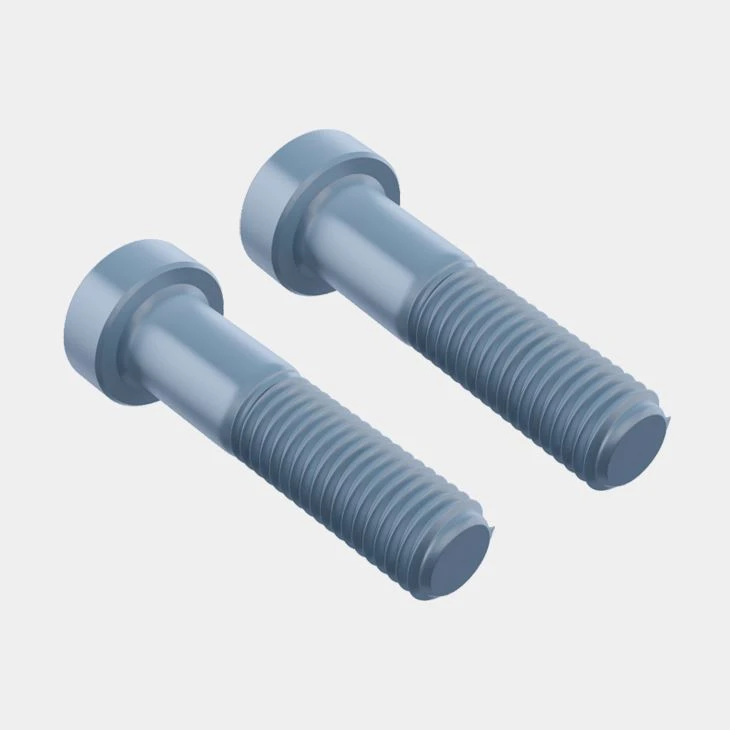

Low Profile Cap Screw
Standard: DIN 7984
Thread Type: Coarse Thread, Partial Thread
Commodity: Low Profile Cap Screw
Also Named: Allen Bolts
Material: Carbon Steel
Property Class: 8.8、10.9
Diameter: M3、M4、M5、M6、M8、M10、M12、(M14)、M16、(M18)、M20、(M22)、M24
Finish: Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type: Low Cap Head
Drive Type: Internal Hex
Alternative Standard: DIN 7984、DIN 6912、DIN 7964
MOQ: 1000kgs
Lead Time: 30 to 60 days
Product Introduction
AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of low profile cap screw in China. Please feel free to buy high quality low profile cap screw made in China here from our factory. For price consultation, contact us.
As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.
Product Description
Product Name | Low Profile Cap Screw |
Also Named | Allen Bolts |
Material | Carbon Steel |
Standard | DIN 7984 |
Property Class | 8.8、10.9 |
Diameter | M3、M4、M5、M6、M8、M10、M12、(M14)、M16、(M18)、M20、(M22)、M24 |
Finish | Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated |
Head Type | Low Cap Head |
Drive Type | Internal Hex |
Thread Type | Coarse Thread, Partial Thread |
Dimensions Table
| Thread Size d | M3 | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | |
| P | Pitch | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 |
| b | L≤125 | 12 | 14 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 |
| 125＜L≤200 | / | / | / | / | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | 60 | |
| L＞200 | / | / | / | / | / | / | / | / | 57 | 61 | 65 | 69 | 73 | |
| dk | max=nominal size | 5.5 | 7 | 8.5 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 33 | 36 |
| min | 5.32 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 32.61 | 35.61 | |
| ds | max=nominal size | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| min | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 | 21.67 | 23.67 | |
| k | max=nominal size | 2 | 2.8 | 3.5 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 |
| min | 1.86 | 2.66 | 3.32 | 3.82 | 4.82 | 5.82 | 6.78 | 7.78 | 8.78 | 9.78 | 10.73 | 11.73 | 12.73 | |
| s | Nominal Size | 2 | 2.5 | 3 | 4 | 5 | 7 | 8 | 10 | 12 | 12 | 14 | 14 | 17 |
| max | 2.1 | 2.6 | 3.1 | 4.12 | 5.14 | 7.175 | 8.175 | 10.175 | 12.212 | 12.212 | 14.212 | 14.212 | 17.23 | |
| min | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 7.025 | 8.025 | 10.025 | 12.032 | 12.032 | 14.032 | 14.032 | 17.05 | |
| t | Nominal Size | 1.5 | 2.3 | 2.7 | 3 | 3.8 | 4.5 | 5 | 5.3 | 5.5 | 6.5 | 7.5 | 8 | 8 |
| max | 1.62 | 2.42 | 2.82 | 3.12 | 3.95 | 4.65 | 5.15 | 5.45 | 5.65 | 6.68 | 7.68 | 8.18 | 8.18 | |
| min | 1.38 | 2.18 | 2.58 | 2.88 | 3.65 | 4.35 | 4.85 | 5.15 | 5.35 | 6.32 | 7.32 | 7.82 | 7.82 | |
| e | min | 2.3 | 2.87 | 3.44 | 4.58 | 5.72 | 8.01 | 9.15 | 11.43 | 13.72 | 13.72 | 16 | 16 | 19.44 |
