Fillister Head Screws

Standard: ASME B 18.6.4
Thread Type: Self-Tapping Screw Thread
Commodity: Fillister Head Screws
Also Named: Fillister Screw
Material: Carbon Steel
Property Class: 4.8-12.9
Diameter(Thread×Slot): 0#×0、1#×0、2#×1、3#×1、4#×1、5#×2、6#×2、7#×2、8#×2、10#×2、12#×3、1/4×3、5/16×3
Finish: Plain, Black, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type: Fillister Head
Drive Type: PZ Drive
Form/Shape Of Tip: Type AB
MOQ: 1000kgs
Lead Time: 30 to 60 days

Send Inquiry

Product Introduction

AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of fillister head screws in China. Please feel free to buy high quality fillister head screws made in China here from our factory. For price consultation, contact us.

Fillister Head Screws-AYA

As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.

PRODUCT DESCRIPTION

Product Name	Fillister Head Screws
Also Named	Fillister Screw
Material	Carbon Steel
Standard	ASME B 18.6.4
Property Class	4.8-12.9
Form/Shape Of Tip	Type AB
Diameter	0#×0、1#×0、2#×1、3#×1、4#×1、5#×2、6#×2、7#×2、8#×2、10#×2、12#×3、1/4×3、5/16×3
Finish	Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type	Fillister Head
Drive Type	PZ Drive
Thread Type	Self-Tapping Screw Thread

DIMENSIONS TABLE

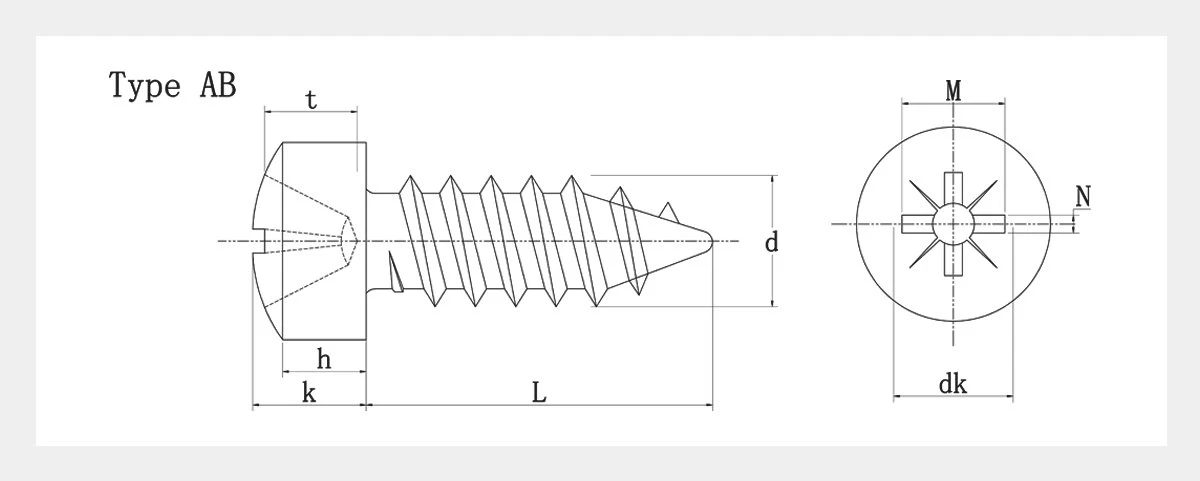

Fillister Head Screws-2D

Nominal Diameter d		0#	1#	2#	3#	4#	5#	6#	7#	8#	10#	12#	1/4	5/16
d	Nominal Size	0.06	0.073	0.086	0.099	0.112	0.125	0.138	0.151	0.164	0.19	0.216	0.25	0.3125
dk	max	0.096	0.118	0.14	0.161	0.183	0.205	0.226	0.248	0.27	0.313	0.357	0.414	0.518
dk	min	0.083	0.104	0.124	0.145	0.166	0.187	0.208	0.229	0.25	0.292	0.334	0.389	0.49
h	max	0.043	0.053	0.062	0.07	0.079	0.088	0.096	0.105	0.113	0.13	0.148	0.17	0.211
h	min	0.038	0.045	0.053	0.061	0.069	0.078	0.086	0.094	0.102	0.118	0.134	0.155	0.194
k	max	0.055	0.066	0.083	0.095	0.107	0.12	0.132	0.144	0.156	0.18	0.205	0.237	0.295
k	min	0.047	0.058	0.066	0.077	0.088	0.1	0.111	0.122	0.133	0.156	0.178	0.207	0.262
M	Ref.	0.06	0.068	0.098	0.106	0.116	0.134	0.156	0.164	0.17	0.186	0.248	0.266	0.308
t	Ref.	0.032	0.039	0.056	0.065	0.075	0.061	0.083	0.092	0.099	0.115	0.13	0.15	0.193
N	Ref.	0.018	0.018	0.028	0.029	0.029	0.04	0.04	0.041	0.041	0.041	0.056	0.057	0.057
Socket No.		0	0	1	1	1	2	2	2	2	2	3	3	3
Penetration depth	max	0.033	0.04	0.053	0.062	0.072	0.054	0.076	0.085	0.092	0.108	0.117	0.137	0.181
Penetration depth	min	0.017	0.024	0.037	0.046	0.056	0.036	0.058	0.067	0.074	0.09	0.099	0.119	0.163

PRODUCT DETAILS

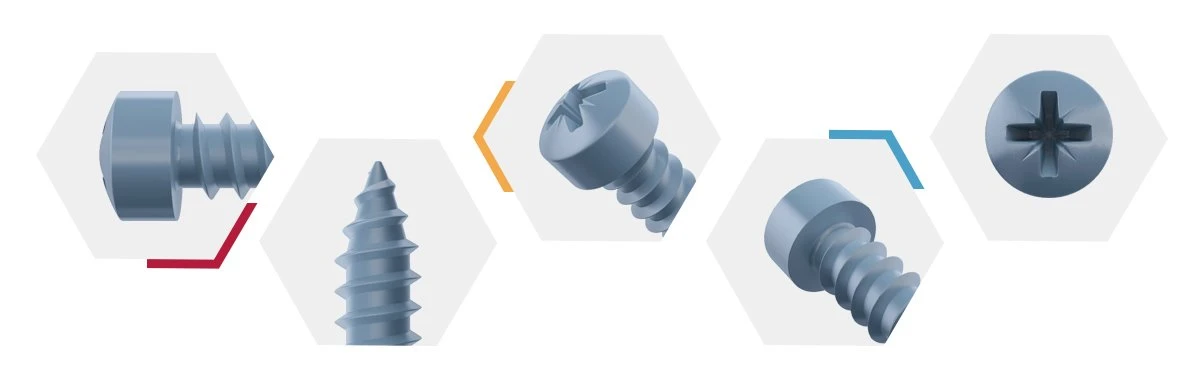

Fillister Head Screws-detail

PRODUCT ADVANTAGES

Fillister Head Screws-advantages

ADVANTAGES OF Fillister Head Screws

1.Fillister head screws are great for countersunk holes because its head has a higher profile that fits deeper slots

2.These screws have rounded heads to increase the aesthetic potential for different uses

3.Made using industry-grade materials for optimal durability and reliability, complete with anti-corrosion and -oxidation properties

4.Each screw comes with a clear and sharp thread that can withstand pressure, minimizing the possibilities of losing grip and

5.AYA’s facilities employ a meticulous quality assurance process that makes sure that all fastening products are up to international standards

6.AYA works with different agents across the globe, helping it fulfill orders reliably and on time

QUALITY INSPECTION

Quality Check-AYA Fasteners

AYA has a professional quality testing laboratory for the QC of the raw materials and final finished products. Our products is manufactured strictly in terms of the requirements of customers and markets. All the key points are optimized to create a high efficient production process.

Our digital system keeps each batch traceable from raw materials to finished products. Complete quality inspection certificates can be offered upon request.

PACKAGING & CONTAINER LOADING

Packing-AYA Fasteners

AYA's design team can meet customers' unique needs for labels.

AYA has always attached great importance to the R&D of the packaging to improve the appearance as well as the durability in the process of shipment.
