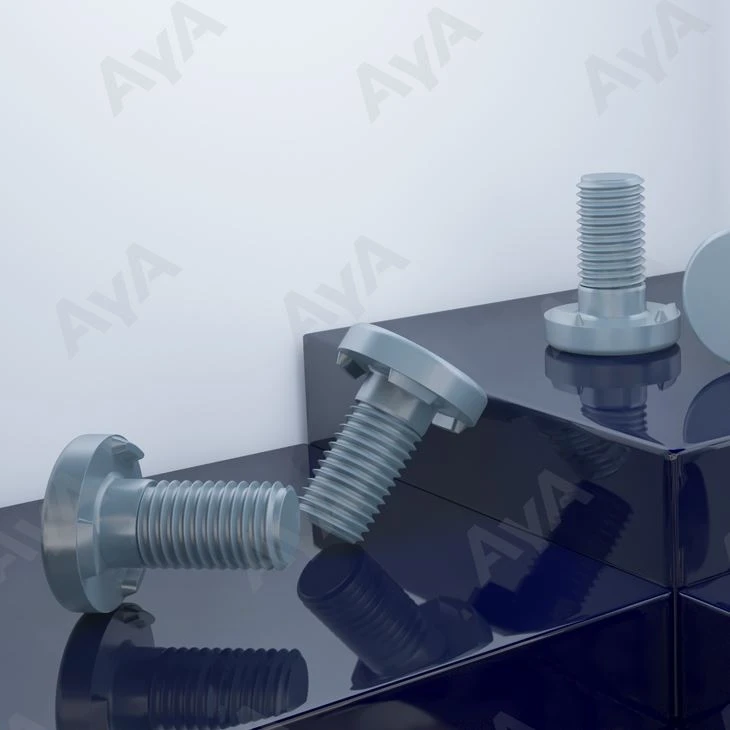

Spot Screw Weld

Standard: DIN 34817
Thread Type: Coarse Thread/Full Thread
Commodity: Spot Screw Weld
Also Named: Welding Steel Studs
Material: Carbon Steel
Property Class: 8.8
Diameter: M5, M6, M8, M10, M12, M14
Finish: Plain/ Black Oxide/ Zinc Plated/ Thick-Film Passivated(ZSML)/ Zinc Flake, Silver(ZFSHL)/ Hot Dipped Galvanized/ Organic/ Geomet/ Dacromet/ Phosphating/ Cadmium Electroplate/ Nickel Plated
Head Type: Flat Round Head
Alternative Standard: DIN 34817、JIS B 1195
MOQ: 1000kgs
Lead Time: 30 to 60 days

Send Inquiry

Product Introduction

AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of spot screw weld in China. Please feel free to buy high quality spot screw weld made in China here from our factory. For price consultation, contact us.

Weld Screws-AYA Screws

As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.

PRODUCT DESCRIPTION

Standard	DIN 34817
Thread Type	Coarse Thread/Full Thread
Commodity	Spot Screw Weld
Also Named	Welding Steel Studs
Material	Carbon Steel
Property Class	8.8
Diameter	M5, M6, M8, M10, M12, M14
Finish	Plain/ Black Oxide/ Zinc Plated/ Thick-Film Passivated(ZSML)/ Zinc Flake, Silver(ZFSHL)/ Hot Dipped Galvanized/ Organic/ Geomet/ Dacromet/ Phosphating/ Cadmium Electroplate/ Nickel Plated
Head Type	Flat Round Head
MOQ	1000kgs
Lead Time	30 to 60 days

DIMENSIONS TABLE

Spot Screw Weld 2D

Screw Thread d		M5	M6	M8	M10	M12	M14
Screw Thread d		M5	M6	M8	M10	M12	M14
P	Pitch	0.8	1	1.25	1.5	1.5	1.5
a	max	2.4	2.8	3.7	4.4	4.6	4.6
dk	max=nominal size	10	12	16	20	24	28
dk	min	9.64	11.57	15.57	19.48	23.48	27.48
dt	max	8.21	10.11	13.68	17.58	21.67	25.72
dt	min	7.85	9.75	13.25	17.15	21.15	25.2
h	max=nominal size	0.8	0.8	1.2	1.4	1.6	1.6
h	min	0.7	0.7	1.1	1.3	1.5	1.5
i	max	0.6	0.6	0.6	0.6	0.6	0.8
i	min	0.2	0.2	0.2	0.2	0.2	0.2
k	Nominal Size	2	2.5	3	4	4.8	5.6
	max	2.2	2.7	3.2	4.2	5	5.8
	min	1.8	2.3	2.8	3.8	4.6	5.4
e	Nominal Size	1.5	1.5	2	2	2	2.5
	max	1.7	1.7	2.2	2.2	2.2	2.7
	min	1.3	1.3	1.8	1.8	1.8	2.3
f	Nominal Size	3.5	4	5.5	7.5	9	11
	max	3.9	4.4	5.9	7.9	9.4	11.5
	min	3.1	3.6	5.1	7.1	8.6	10.5
ds	max	5	6	8	10	12	14
ds	min	4.82	5.82	7.78	9.78	11.73	13.73
①, Material: Carbon steel with additions with Cmax=0.25% by DIN EN 10263-4; Property class 8.8 Note: Except Cmax=0.25%, a carbon equivalent, CEV, of max.0.5% is recommended to ensure weldability

PRODUCT DETAILS

Spot Screw Weld details

PRODUCT ADVANTAGES

Spot Screw Weld advantages

ADVANTAGES OF Spot Screw Weld

1. Spot weld screws are used to attach metal surfaces so that objects can be placed over them and secured with nuts and washers.

2. Projections extending from the head allow for welding to the mating surface without using a hole.

3. Spot weld Screws are designed to be permanently welded to like materials.

4. Spot weld Screws are available in low carbon, stainless steel, heat-treated, and plated.

5. Different thread types are available, and the majority of our weld screws are made to be welded in confined spaces.

6. Every single welding screw is thoroughly inspected internally for foreign and missing components. Maximum dependability for high-quality products is thus guaranteed.
