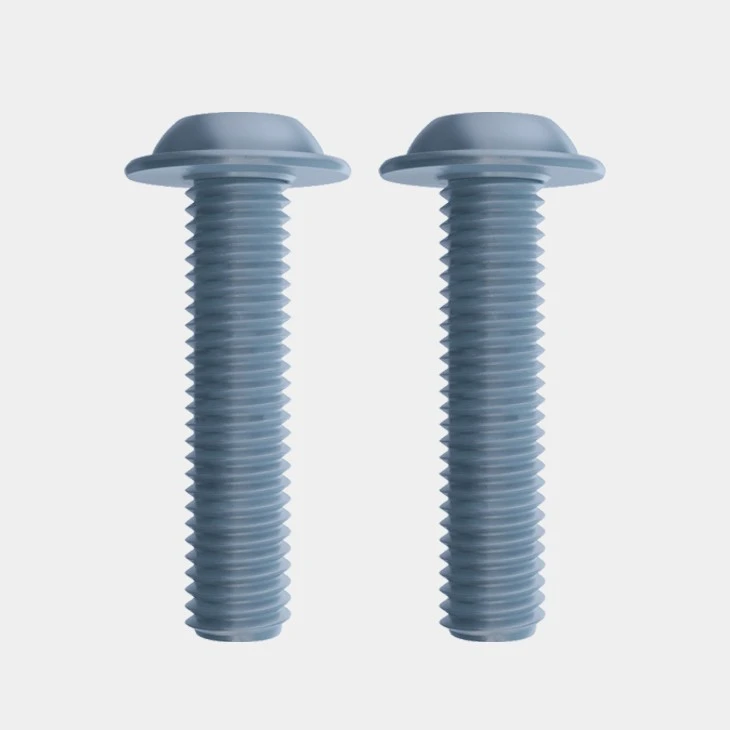

Torx Head Screws
Standard: DIN 34805-2
Thread Type: Coarse Thread / Fine Thread
Thread Length: Full Thread / Partial Thread
Commodity: Torx Head Screws
Also Named: Torx Head Machine Screws
Material: Carbon Steel
Property Class: 4.6/4.8, 5.6, 5.8, 6.8, 8.8, 9.8, 10.9, 12.9
Diameter: M3, M4, M5, M6, M8,M10, M12
Finish: Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type: Pan Head
Drive Type: Hexalobular Socket
MOQ: 1000kgs
Lead Time: 30 to 60 days
Product Introduction
AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of torx head screws in China. Please feel free to buy high quality torx head screws made in China here from our factory. For price consultation, contact us.
As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.
PRODUCT DESCRIPTION
| Product Name | Torx Head Screws |
| Also Named | Torx Head Machine Screws |
| Material | Carbon Steel |
| Standard | DIN 34805-2 |
| Property Class | 4.6/4.8, 5.6, 5.8, 6.8, 8.8, 9.8, 10.9, 12.9 |
|
Diameter |
M3, M4, M5, M6, M8,M10, M12 |
| Finish | Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated |
| Head Type | Pan Head |
| Drive Type | Hexalobular Socket |
| Thread Type | Coarse Thread / Fine Thread |
| Thread Length | Full Thread / Partial Thread |
DIMENSIONS TABLE
| Thread Size d |
M3 | M4 | M5 | M6 | M8 | M10 | M12 | |
| P | Pitch | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 |
| dc | max | 6.9 | 9.4 | 11.8 | 13.6 | 17.8 | 21.9 | 26 |
| min | 6.32 | 8.82 | 11.1 | 12.9 | 17.1 | 21.06 | 25.16 | |
| ds | max | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| min | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | |
| k | max | 1.8 | 2.45 | 3 | 3.3 | 4.5 | 5.5 | 6.6 |
| min | 1.6 | 2.25 | 2.7 | 3 | 4.2 | 5.2 | 6.24 | |
| Socket No. | 10 | 20 | 25 | 30 | 45 | 50 | 55 | |
| A | Ref. | 2.8 | 3.95 | 4.5 | 5.6 | 7.93 | 8.95 | 11.35 |
| t | max | 0.93 | 1.53 | 1.61 | 1.78 | 2.54 | 3.05 | 3.8 |
| min | 0.8 | 1.24 | 1.32 | 1.48 | 2.15 | 2.65 | 3.35 | |
PRODUCT DETAILS
PRODUCT ADVANTAGES
ADVANTAGES OF TORX HEAD SCREWS
1. Due to the Torx head design, these screws are capable of handling torque efficiently.
2. They have a range of applications in the automotive and consumer-electronics industries.
3. The head of the screw has a 6-pointed lobe.
4. You can take advantage of the tamper-resistant Torx. Moreover, these screws have security screw heads.
5. We have a vast range of high-quality Torx head screws. You will get lasting value from these screws.
6. Our company has a dedicated delivery team to deliver your Torx head screws to the designation.
QUALITY INSPECTION
PACKAGING & CONTAINER LOADING
USAGE SCENARIOS
WHY CHOOSE AYA?
AYA provides exclusive services to 1000+ members from all over the world every year, with a unique chain service solution system, you only need to click the mouse to get exclusive fastening solutions and enjoy door-to-door services.
