Hexalobular Screw
Standard: DIN 34805-1
Thread Type: Coarse Thread / Fine Thread
Thread Length: Full Thread / Partial Thread
Commodity: Hexalobular Screw
Also Named: Torx Machine Screws
Material: Carbon Steel
Property Class: 4.6/4.8, 5.6, 5.8, 6.8, 8.8, 9.8, 10.9, 12.9
Diameter: M3, M4, M5, M6, M8, M10, M12
Finish: Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type: Pan Head
Drive Type: Hexalobular Socket
Alternative Standard: ISO 14583
MOQ: 1000kgs
Lead Time: 30 to 60 days
Product Introduction
AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of hexalobular screw in China. Please feel free to buy high quality hexalobular screw made in China here from our factory. For price consultation, contact us.
As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.
PRODUCT DESCRIPTION
| Product Name | Hexalobular Screw |
| Also Named | Torx Machine Screws |
| Material | Carbon Steel |
| Standard | DIN 34805-1 |
| Property Class | 4.6/4.8, 5.6, 5.8, 6.8, 8.8, 9.8, 10.9, 12.9 |
| Diameter | M3, M4, M5, M6, M8, M10, M12 |
| Finish | Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated |
| Head Type | Pan Head |
| Drive Type | Hexalobular Socket |
| Thread Type | Coarse Thread / Fine Thread |
| Thread Length | Full Thread / Partial Thread |
| Alternative Standard | ISO 14583 |
DIMENSIONS TABLE
| Thread Size d |  M3 | M4 | M5 | M6 | M8 | M10 | M12 | |
| P | Pitch | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 |
| b | Ref. | 18 | 20 | 22 | 24 | 28 | 32 | 36 |
| da | max | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 |
| dk | max | 5.7 | 7.6 | 9.5 | 10.5 | 14 | 17.5 | 21 |
| min | 5.4 | 7.24 | 9.14 | 10.07 | 13.57 | 17.07 | 20.48 | |
| d1 | Ref. | 3.5 | 4.9 | 5.6 | 7 | 9.9 | 11.2 | 14.2 |
| ds | max | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| min | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | |
| dw | min | 4.97 | 6.66 | 8.41 | 9.26 | 12.48 | 15.7 | 18.85 |
| k | max | 1.8 | 2.45 | 3 | 3.3 | 4.5 | 5.5 | 6.6 |
| min | 1.6 | 2.25 | 2.7 | 3 | 4.2 | 5.2 | 6.24 | |
| R | max | 3.5 | 4.6 | 5.6 | 6.2 | 7.6 | 10.1 | 11.8 |
| min | 2.5 | 3.4 | 4.4 | 5 | 6.2 | 8.5 | 10 | |
| r1 | min | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 |
| r2 | min | 0.3 | 0.4 | 0.45 | 0.5 | 0.7 | 0.7 | 1.1 |
| Socket No. | 10 | 20 | 25 | 30 | 45 | 50 | 55 | |
| A | Ref. | 2.8 | 3.95 | 4.5 | 5.6 | 7.93 | 8.95 | 11.35 |
| t | max | 0.93 | 1.53 | 1.61 | 1.78 | 2.54 | 3.05 | 3.8 |
| min | 0.8 | 1.24 | 1.32 | 1.48 | 2.15 | 2.65 | 3.35 | |
| ①,r1: Below the head radius for screws with thread-free. ②,r2：Shank lower head radius for screws with thread up to the head. |

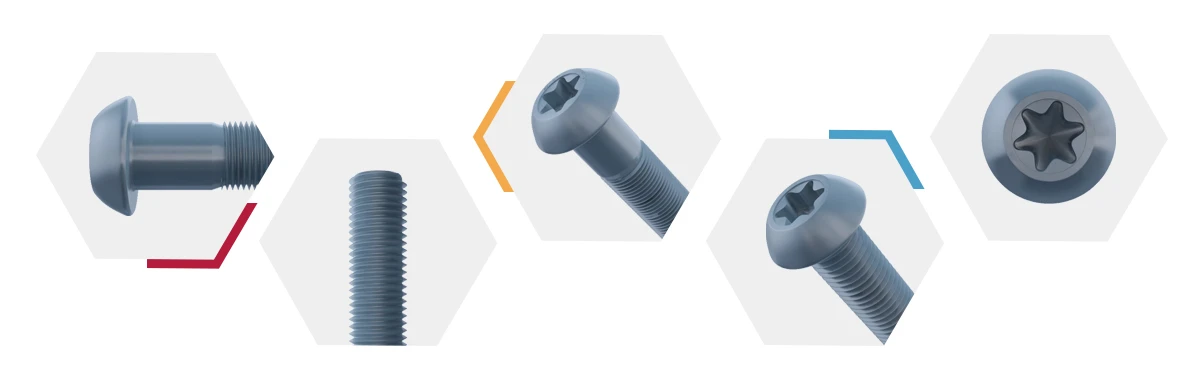

PRODUCT DETAILS
PRODUCT ADVANTAGES
ADVANTAGES OF Hexalobular Screw
1. While using the hexalobular screws, you will find the stress is not much concentrated. It minimizes the risk of tool breakage.
2. You can tighten the parts reliably and safely.
3. The fastener has a star-shaped recess and 6 rounded points.
4. Being made of stainless steel, the screws are highly durable.
5. Our company has a professional delivery team to transport the screws to your destination.
6. A bulk pack of screws is available at an affordable rate.
