Machine Screw

AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of machine screw in China. Please feel free to buy high quality machine screw made in China here from our factory. For price consultation, contact us.





As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.



PRODUCT DESCRIPTION

---



Product Name	Machine Screw
Also Named	Machine Screw Set
Material	Carbon Steel
Standard	ASME B 18.6.3
Property Class	4.6-12.9
Diameter	0#, 1#, 2#, 3#, 4#, 5#, 6#, 8#, 10#, 12#, 1/4, 5/16, 3/8, 7/16, 1/2
Finish	Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type	Pan Head
Drive Type	Combo Drive
Thread Type	Coarse Thread / Fine Thread
Thread Length	Full Thread

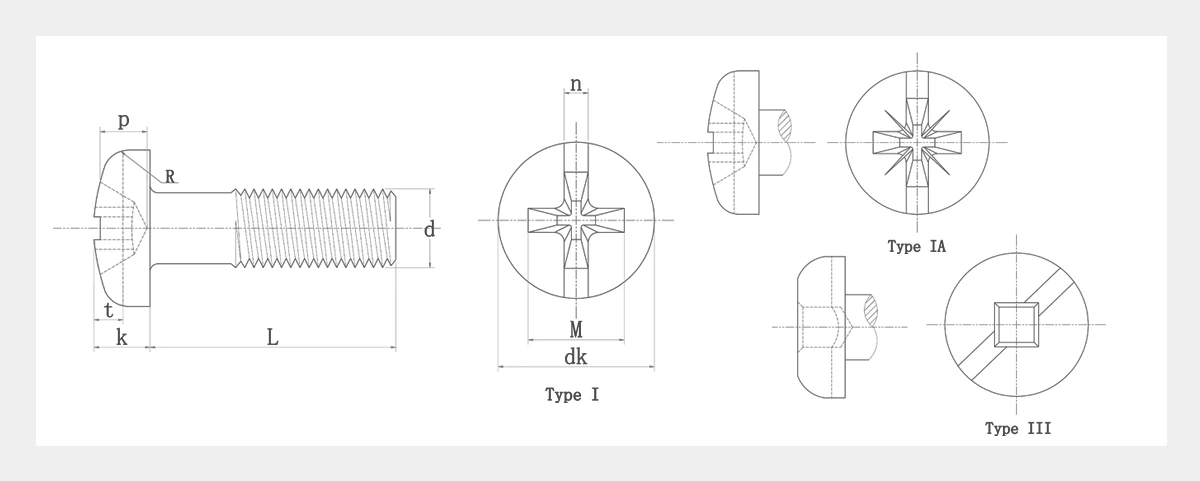

DIMENSIONS TABLE

---





Screw Thread d			0#	1#	2#	3#	4#	5#	6#	8#	10#	12#	1/4	5/16	3/8	7/16	1/2
d			0.06	0.073	0.086	0.099	0.112	0.125	0.138	0.164	0.19	0.216	0.25	0.3125	0.375	0.4375	0.5
PP	UNC		80	64	56	48	40	40	32	32	24	24	20	18	16	14	13
dk	max		0.116	0.142	0.167	0.193	0.219	0.245	0.27	0.322	0.373	0.425	0.492	0.615	0.74	0.863	0.987
	min		0.104	0.13	0.155	0.18	0.205	0.231	0.256	0.306	0.357	0.407	0.473	0.594	0.716	0.837	0.958
k	max		0.044	0.053	0.062	0.071	0.08	0.089	0.097	0.115	0.133	0.151	0.175	0.218	0.261	0.305	0.348
	min		0.036	0.044	0.053	0.062	0.07	0.079	0.087	0.105	0.122	0.139	0.162	0.203	0.244	0.284	0.325
n	max		0.023	0.026	0.031	0.035	0.039	0.043	0.048	0.054	0.06	0.067	0.075	0.084	0.094	0.094	0.106
	min		0.016	0.019	0.023	0.027	0.031	0.035	0.039	0.045	0.05	0.056	0.064	0.072	0.081	0.081	0.091
t	max		0.022	0.027	0.031	0.036	0.04	0.045	0.05	0.058	0.068	0.077	0.087	0.106	0.124	0.142	0.161
	min		0.013	0.016	0.02	0.023	0.027	0.03	0.033	0.041	0.048	0.055	0.063	0.076	0.09	0.105	0.118
M	Type I		0.06	0.067	0.097	0.105	0.115	0.152	0.159	0.175	0.192	0.252	0.274	0.343	0.382	0.406	0.428
	Type IA		0.06	0.067	0.097	0.105	0.115	0.147	0.155	0.17	0.185	0.247	0.266	0.334	0.37	0.392	0.413
	Type III		-	-	0.05	0.07	0.07	0,091	0.091	0.112	0.112	0.133	0.133	0.191	0.191	-	-
P	Type I	Max.	0.032	0.04	0.052	0.061	0.071	0.072	0.08	0.097	0.113	0.124	0.144	0.173	0.213	0.239	0.26
		Min.	0.014	0.022	0.034	0.043	0.053	0.046	0.055	0.071	0.089	0.098	0.118	0.149	0.19	0.214	0.235
	Type IA	Max.	0.033	0.04	0.053	0.062	0.072	0,068	0.076	0.092	0.108	0.117	0.137	0.164	0.201	0.224	0.246
		Min.	0.017	0.024	0.037	0.046	0.056	0.05	0.058	0.074	0.09	0.099	0.119	0.146	0.183	0.206	0.228
	Type III	Max.	-	-	0.033	0.038	0.038	0.065	0.065	0.075	0.075	0.095	0,095	0.1	0.1	-	-
		Min.	-	-	0.028	0.028	0.028	0.05	0.05	0.06	0.06	0.08	0.08	0.085	0.085	-	-
Drive Size	Type I		0	0	1	1	1	2	2	2	2	3	3	4	4	4	4
	Type IA		0	0	1	1	1	2	2	2	2	3	3	4	4	4	4
	Type III		-	-	0	0	0	1R	1R	2R	2R	3R	3R	4R	4R	4R	4R

①, Carbon Steel - Unhardened. Unless otherwise specified, machine screw shall be non-heat-treated low carbon steel, such as 1006 through 1022, with a hardness of Rockwell B69-100 ②, Carbon Steel - Hardened. When hardened machine screws are specified, they shall be made form low or medium carbon steel, such as 1018 through 1038, with or without boron, through-hardened to Rockwell C25-38





PRODUCT DETAILS

---







PRODUCT ADVANTAGES

---







ADVANTAGES OF Machine Screw

---





1. You can fasten more than 2 objects using a machine screw.

2. The size has made this screw unique. The diameter of the screw is around 0.75 inches or less. Uniform threading is another characteristic of the machine screw.

3. The outer sides of the screws have a helical edge, which has a consistent design.

4. You can easily join metal objects using the machine screws.

5. Our machine screws are made of high-quality stainless steel and ensure a sturdy design.

6. Our screws are available at a reasonable price, so, you can buy a large number of screws.



QUALITY INSPECTION

---





PACKAGING & CONTAINER LOADING

---





USAGE SCENARIOS

---





WHY AYA?

---
