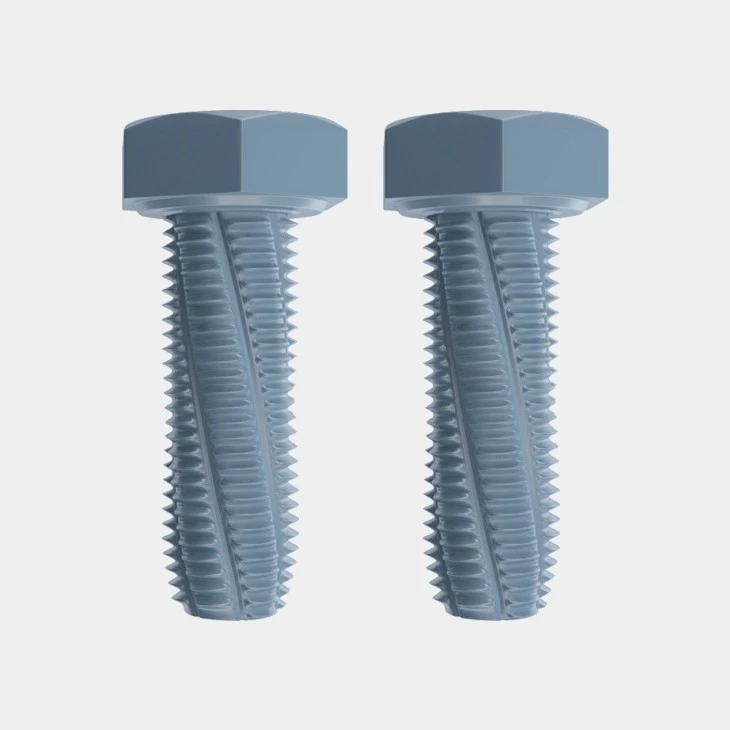

Hex Head Thread Cutting Screws
Standard: DIN 7513 (A)
Thread Type: Cutting Screw Thread
Commodity: Hex Head Thread Cutting Screws
Also Named: Self Tapping Thread Cutting Bolts
Material: Carbon Steel
Property Class: A
Form: A
Diameter: M4, M5, M6, M8
Finish: Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type: Hexagon Head
Drive Type: Outer Hex
MOQ: 1000kgs
Lead Time: 30 to 60 days
Product Introduction
AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of hex head thread cutting screws in China. Please feel free to buy high quality hex head thread cutting screws made in China here from our factory. For price consultation, contact us.
As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.
PRODUCT DESCRIPTION
Product Name | Hex Head Thread Cutting Screws |
Also Named | Self Tapping Thread Cutting Bolts |
Material | Carbon Steel |
Property Class | A |
Form | A |
Standard | DIN 7513 (A) |
Diameter | M4, M5, M6, M8 |
Finish | Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated |
Head Type | Hexagon Head |
Drive Type | Outer Hex |
Thread Type | Cutting Screw Thread |
DIMENSIONS TABLE
| Specifications | ||||||
| d | M4 | M5 | M6 | M8 | ||
| P | Pitch | 0.7 | 0.8 | 1 | 1.25 | |
| e | Grade A | min | 7.66 | 8.79 | 11.05 | 14.38 |
| Grade B | min | 7.5 | 8.63 | 10.89 | 14.2 | |
| k | nominal size | 2.8 | 3.5 | 4 | 5.3 | |
| Grade A | max | 2.925 | 3.65 | 4.15 | 5.45 | |
| min | 2.675 | 3.35 | 3.85 | 5.15 | ||
| Grade B | max | 3 | 3.74 | 4.24 | 5.54 | |
| min | 2.6 | 3.26 | 3.76 | 5.06 | ||
| s | max=nominal size | 7 | 8 | 10 | 13 | |
| Grade A | min | 6.78 | 7.78 | 9.78 | 12.73 | |
| Grade B | min | 6.64 | 7.64 | 9.64 | 12.57 | |
| Recommend Hole Size | min=nominal size(H11) | 3.6 | 4.5 | 5.5 | 7.4 | |
| max | 3.675 | 4.575 | 5.575 | 7.49 | ||
PRODUCT DETAILS
PRODUCT ADVANTAGES
ADVANTAGES OF Hex Head Thread Cutting Screws
1. Hex head thread cutting screws have harder threads and different point geometries.
2. One of the advantages of hex head thread cutting screws is the self-locking effect.
3. Self tapping thread cutting bolts reduce the number of fasteners and operations required for traditional assembly.
4. Hex head thread cutting screws are often used in light alloys and various thermoplastic materials.
5. AYA can be tailored to your specific questions and needs, please contact us for more information.

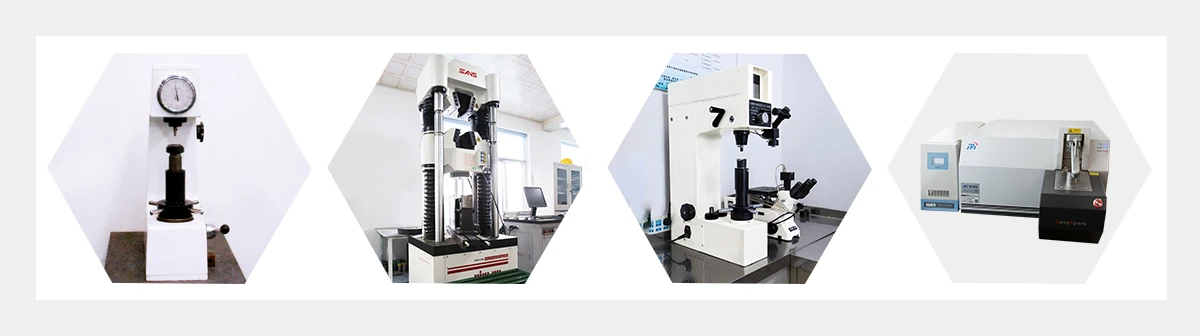

QUALITY INSPECTION
1. Raw materials quality will be under strict control from the initial stage of the product's R&D to the final production.
2. AYA has a professional quality testing laboratory for the QC of the raw materials and final finished products. Our products are manufactured strictly in terms of the requirements of customers and markets. All the key points are optimized to create a highly efficient production process.
3. Final product inspection is a key point. AYA has a complete sampling check system for this important task and each detail will be fully inspected.
4. Our digital system keeps each batch traceable from raw materials to finished products. Complete quality inspection certificates can be offered upon request.
PACKAGING & CONTAINER LOADING
1. OEM services are supported by AYA on labels.
2. AYA's high-performance packing equipment maximizes packaging productivity and efficiency to make fast delivery.
3. AYA's design team can meet customers' unique needs for labels.
4. The packaging could be customized according to customer needs. And it would be fully reinforced to prevent unexpected damages during the shipment.
USAGE SCENARIOS
WHY CHOOSE AYA?
AYA provides exclusive services to 1000+ members from all over the world every year, with a unique chain service solution system, you only need to click the mouse to get exclusive fastening solution and enjoy door-to-door services.
