Low Head Socket Head Cap Screw

Standard: DIN 6912
Thread Type: Coarse Thread, Partial Thread
Commodity: Low Head Socket Head Cap Screw
Also Named: Allen Key Bolt
Material: Carbon Steel
Property Class: 8.8
Diameter: M4、M5、M6、M8、M10、M12、(M14)、M16、(M18)、M20、(M22)、M24、(M27)、M30、(M33)、M36
Finish: Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type: Low Cap Head
Drive Type: Internal Hex
Alternative Standard: DIN 7984、DIN 6912、DIN 7964
MOQ: 1000kgs
Lead Time: 30 to 60 days

Send Inquiry

Product Introduction

AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of low head socket head cap screw in China. Please feel free to buy high quality low head socket head cap screw made in China here from our factory. For price consultation, contact us.

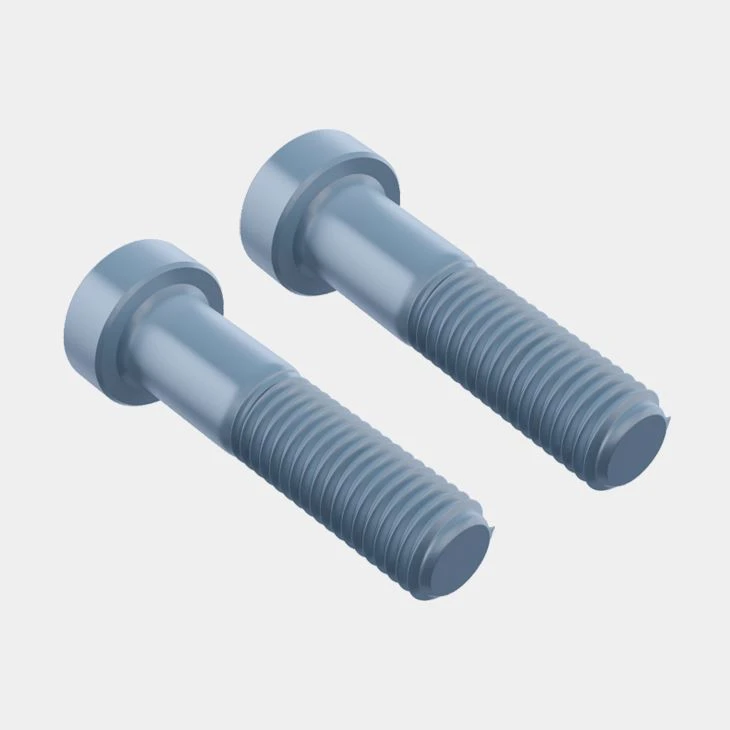

Low Head Socket Head Cap Screw-AYA

As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.

Product Description

Product Name	Low Head Socket Head Cap Screw
Also Named	Allen Key Bolt
Material	Carbon Steel
Standard	DIN 6912
Property Class	8.8
Diameter	M4、M5、M6、M8、M10、M12、(M14)、M16、(M18)、M20、(M22)、M24、(M27)、M30、(M33)、M36
Finish	Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type	Low Cap Head
Drive Type	Internal Hex
Thread Type	Coarse Thread, Partial Thread

Dimensions Table

Low Head Socket Head Cap Screw-2D

Thread Size d		M4	M5	M6	M8	M10	M12	(M14)	M16
P	Pitch	0.7	0.8	1	1.25	1.5	1.75	2	2
b	L≤125	14	16	18	22	26	30	34	38
	125＜L≤200	/	/	/	/	32	36	40	44
	L＞200	/	/	/	/	/	/	/	57
d1	min=nominal size	2	2.5	3	4	5	6	7	8
d1	max	2.06	2.56	3.06	4.075	5.075	6.075	7.09	8.09
dk	max=nominal size	7	8.5	10	13	16	18	21	24
dk	min	6.78	8.28	9.78	12.73	15.73	17.73	20.67	23.67
k	max=nominal size	2.8	3.5	4	5	6.5	7.5	8.5	10
k	min	2.66	3.32	3.82	4.82	6.28	7.28	8.28	9.78
t	Nominal Size	1.6	2	2.5	3	3.5	4	4.5	5.5
	min	1.48	1.88	2.38	2.88	3.35	3.85	4.35	5.35
	max	1.72	2.12	2.62	3.12	3.65	4.15	4.65	5.65
t1	min	3.3	4	5	6.5	7.5	9	10	11.5
t1	max	3.6	4.3	5.3	6.86	7.86	9.36	10.36	11.93
s	Nominal Size	3	4	5	6	8	10	12	14
	min	3.02	4.02	5.02	6.02	8.025	10.025	12.032	14.032
	max	3.1	4.12	5.14	6.14	8.175	10.175	12.212	14.212
ds	max=nominal size	4	5	6	8	10	12	14	16
ds	min	3.82	4.82	5.82	7.78	9.78	11.73	13.73	15.73

Thread Size d		(M18)	M20	(M22)	M24	(M27)	M30	(M33)	M36
P	Pitch	2.5	2.5	2.5	3	3	3.5	3.5	4
b	L≤125	42	46	50	54	60	66	72	78
	125＜L≤200	48	52	56	60	66	72	78	84
	L＞200	61	65	69	73	79	85	91	97
d1	min=nominal size	8	10	10	12	12	15	16.5	18
d1	max	8.09	10.09	10.09	12.11	12.11	15.11	16.61	18.11
dk	max=nominal size	27	30	33	36	40	45	50	54
dk	min	26.67	29.67	32.61	35.61	39.61	44.61	49.61	53.54
k	max=nominal size	11	12	13	14	16	17.5	19.5	21.5
k	min	10.73	11.73	12.73	13.73	15.73	17.23	19.17	21.17
t	Nominal Size	6	6.5	7	7	8.5	9	10	11.5
	min	5.85	6.32	6.82	6.82	8.32	8.82	9.82	11.28
	max	6.15	6.68	7.18	7.18	8.68	9.18	10.18	11.72
t1	min	12.5	14	15	16	17	19	20	24
t1	max	12.93	14.43	15.43	16.43	17.43	19.52	20.52	24.52
s	Nominal Size	14	17	17	19	19	22	24	27
	min	14.032	17.05	17.05	19.065	19.065	22.065	24.065	27.065
	max	14.212	17.23	17.23	19.275	19.275	22.275	24.275	27.275
ds	max=nominal size	18	20	22	24	27	30	33	36
ds	min	17.73	19.67	21.67	23.67	26.67	29.67	32.61	35.61

Product Details

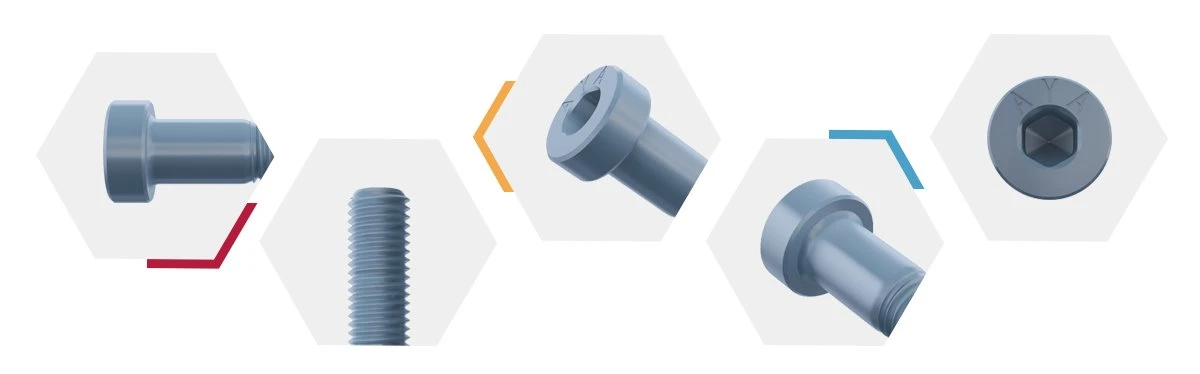

Low Head Socket Head Cap Screw-detail

Product Advantages

Low Head Socket Head Cap Screw-advantages

Advantages OF LOW HEAD SOCKET HEAD CAP SCREW

1. Tamper-resistant and great in protecting your company's machinery as it becomes difficult to open them in less time.

2. You can use them seamlessly in clamping, die fixturing, and various types of machinery parts.

3. This type of cap screw works as a highly sterile fastener as they provide full protection against other types of bolts and screws used for machinery.

4. Prove best for fastening the machinery when the workers work in closed spaces like that in construction applications.

5. AYA is known for handling a wide variety of needs of its clients by delivering the screws within a stipulated time.

6. AYA high-quality socket head cap screws are best for providing a clean effect.
