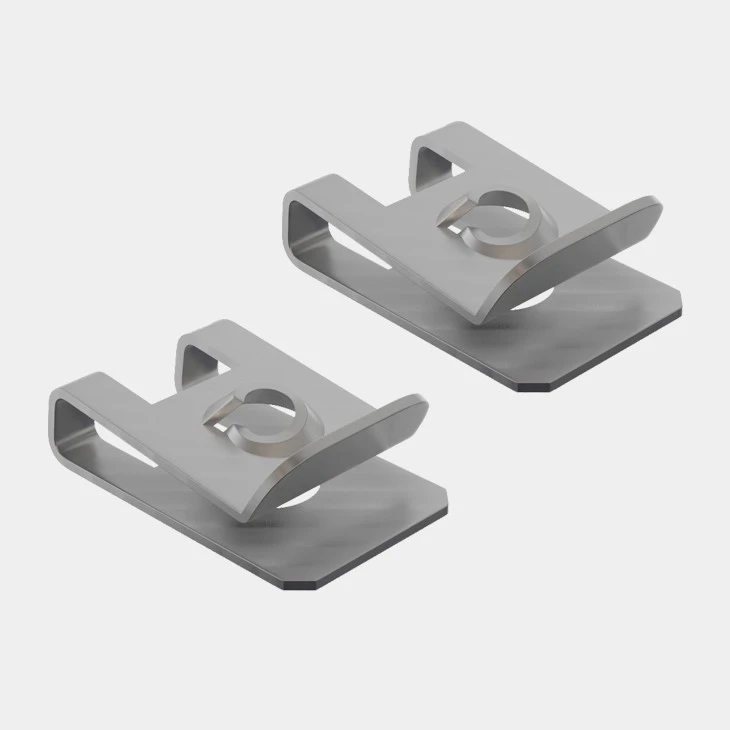

Stainless Steel Spring Nut

Standard: DIN 34818
Thread Type: Coarse Thread
Commodity: Stainless Steel Spring Nut
Also Named: Stainless Spring Nuts
Material: Stainless Steel
Property Class: A2(50-80）， A4(50-80)
Diameter:ST2.9×16, ST3.5×17, ST4.2×20, ST4.2×24, ST4.8×20, ST4.8×24, ST4.8×28, ST6.3×20, ST6.3×24, ST6.3×28
Finish: Plain, Passivated, Customization
MOQ: 1000kgs
Lead Time: 30 to 60 days

Send Inquiry

Product Introduction

AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of stainless steel spring nut in China. Please feel free to buy high quality stainless steel spring nut made in China here from our factory. For price consultation, contact us.

Stainless Steel Spring Nuts-AYA FASTENERS

As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.

PRODUCT DESCRIPTION

Product Name	Stainless Steel Spring Nut
Also Named	Stainless Spring Nuts
Material	Stainless Steel
Standard	DIN 34818
Property Class	A2(50-80）， A4(50-80)
Diameter	ST2.9×16, ST3.5×17, ST4.2×20, ST4.2×24, ST4.8×20, ST4.8×24, ST4.8×28, ST6.3×20, ST6.3×24, ST6.3×28
Finish	Plain, Passivated, Customization
Thread Type	Coarse Thread

DIMENSIONS TABLE

Stainless Steel Spring Nut 2D

For Nominal Thread Diameter			ST2.9×16	ST3.5×17	ST4.2×20	ST4.2×24	ST4.8×20	ST4.8×24	ST4.8×28	ST6.3×20	ST6.3×24	ST6.3×28
For Nominal Thread Diameter			ST2.9×16	ST3.5×17	ST4.2×20	ST4.2×24	ST4.8×20	ST4.8×24	ST4.8×28	ST6.3×20	ST6.3×24	ST6.3×28
s	Nominal Size		0.5	0.5	0.6	0.6	0.7	0.7	0.7	0.7	0.7	0.7
	max		0.57	0.57	0.67	0.67	0.77	0.77	0.77	0.77	0.77	0.77
	min		0.43	0.43	0.53	0.53	0.63	0.63	0.63	0.63	0.63	0.63
b	Nominal Size		11	11	11	11	15	15	15	16	16	16
	max		11.3	11.3	11.3	11.3	15.3	15.3	15.3	16.3	16.3	16.3
	min		10.7	10.7	10.7	10.7	14.7	14.7	14.7	15.7	15.7	15.7
L	Nominal Size		16	17	20	24	20	24	28	20	24	28
	max		16.3	17.3	20.3	24.3	20.3	24.3	28.3	20.3	24.3	28.3
	min		15.7	16.7	19.7	23.7	19.7	23.7	27.7	19.7	23.7	27.7
x	Nominal Size		8	8	9	13	9	13	17	9	13	17
	max		8.3	8.3	9.3	13.3	9.3	13.3	17.3	9.3	13.3	17.3
	min		7.7	7.7	8.7	12.7	8.7	12.7	16.7	8.7	12.7	16.7
f	Low	max	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
	Low	min	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5
	High	max	5	5	5	5	5	5	5	5	5	5
	High	min	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5

①, Material: Steel grade C67S as specified in DIN EN 10132-4-2000. Hardness 435 HV5 to 535 HV5

PRODUCT DETAILS

Stainless Steel Spring Nut details

PRODUCT ADVANTAGES

Stainless Steel Spring Nut advantage

ADVANTAGES OF Stainless Steel Spring Nut

1. High-quality stainless steel spring self-locking nuts with hard grooves fit on the channel edge and a screw hole is manufactured using the latest technology.

2. The threads are sharp and can easily make a grip with the bolt.

3. This type of nuts help in securing and gripping the components in a strut system

4. They are typically used for secure fittings like electrical panels, junction boxes, and piping clamps.

5. The Company has provided complete fastening solutions to its customers for the last nine years.

6. Currently, AYA serves B2B over 1000 customers worldwide. Customers' trust demonstrates the quality and durability of their products.
