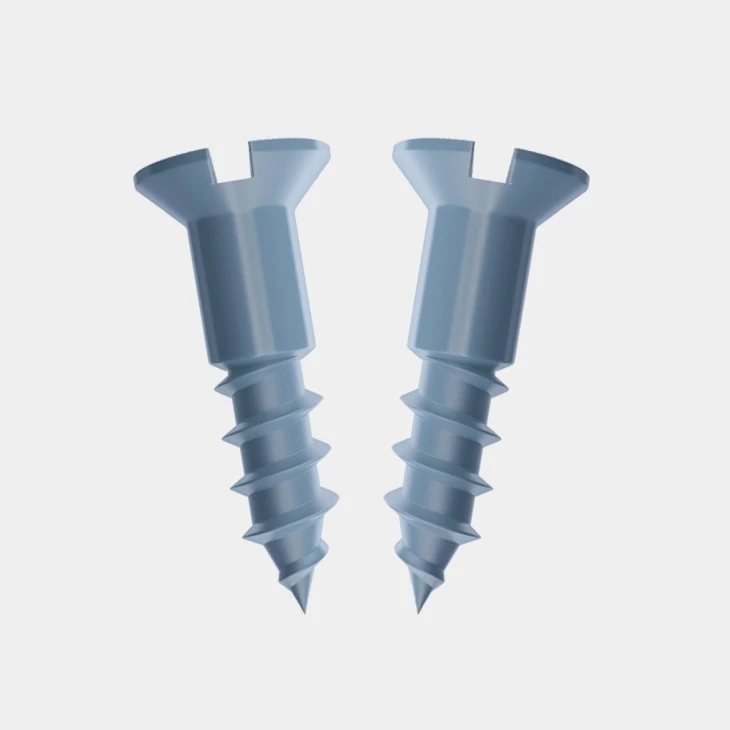

Flat Wood Screws
Standard: JIS B 1135
Thread Type: Wood Screw Thread
Commodity: Flat Wood Screws
Also Named: Steel Slotted Countersunk Wood Screws
Material: Carbon Steel
Property Class: 4.8-12.9
Diameter: 1.6、1.8、2.1、2.4、2.7、3.1、3.5、3.8、4.1、4.5、4.8、5.1、5.5、5.8、6.2、6.8、7.5、8、9.5
Finish: Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type: Flat Head
Drive Type: Internal Slot
Alternative Standard: DIN 97、ANSI/ASME B 18.6.1、JIS B 1135
MOQ: 1000kgs
Lead Time: 30 to 60 days
Product Introduction
AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of flat wood screws in China. Please feel free to buy high quality flat wood screws made in China here from our factory. For price consultation, contact us.
As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern customers.
PRODUCT DESCRIPTION
| Product Name | Flat Wood Screws |
| Also Named | Steel Slotted Countersunk Wood Screws |
| Material | Carbon Steel |
| Standard | JIS B 1135 |
| Property Class | 4.8-12.9 |
Diameter | 1.6、1.8、2.1、2.4、2.7、3.1、3.5、3.8、4.1、4.5、4.8、5.1、5.5、5.8、6.2、6.8、7.5、8、9.5 |
| Finish | Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated |
| Head Type | Flat Head |
| Drive Type | Internal Slot |
| Thread Type | Wood Screw Thread |
| Alternative Standard | DIN 97、ANSI/ASME B 18.6.1 |
DIMENSIONS TABLE
| d | d | dk | k | n | t | |||||
| max | min | max | win | max | min | max | min | max | min | |
| 1.6 | 1.65 | 1.55 | 3.2 | 2.8 | 0. 95 | 0. 75 | 0. 55 | 0.4 | 0.5 | 0.3 |
| 1.8 | 1.85 | 1.75 | 3.6 | 3.2 | 1.05 | 0. 85 | 0. 75 | 0.6 | 0.6 | 0.4 |
| 2.1 | 2.17 | 2. 03 | 4.2 | 3.8 | 1.25 | 1.05 | 0. 75 | 0.6 | 0.6 | 0.4 |
| 2.4 | 2. 47 | 2. 33 | 4.8 | 4.4 | 1.4 | 1.2 | 0. 85 | 0.7 | 0. 75 | 0. 45 |
| 2.7 | 2. 77 | 2. 63 | 5.4 | 5 | 1.55 | 1.35 | 1 | 0.8 | 0. 85 | 0. 55 |
| 3.1 | 3.17 | 3. 03 | 6.2 | 5.7 | 1.8 | 1.5 | 1.1 | 0.9 | 0. 95 | 0.65 |
| 3.5 | 3.6 | 3.4 | 7 | 6.5 | 2 | 1.7 | 1.2 | 1 | 1.1 | 0.7 |
| 3.8 | 3.9 | 3.7 | 7.6 | 7.1 | 2.15 | 1.85 | 1.2 | 1 | 1.1 | 0.7 |
| 4.1 | 4.2 | 4 | 8.2 | 7.6 | 2. 35 | 2. 05 | 1.4 | 1.2 | 1.2 | 0.8 |
| 4.5 | 4.6 | 4.4 | 9 | 8.4 | 2. 55 | 2.25 | 1.4 | 1.2 | 1.3 | 0.9 |
| 4.8 | 4. 92 | 4. 68 | 9.6 | 9 | 2.7 | 2.4 | 1.5 | 1.3 | 1.45 | 0. 95 |
| 5.1 | 5. 22 | 4. 98 | 10.2 | 9.6 | 2. 85 | 2. 55 | 1.6 | 1.4 | 1.45 | 0. 95 |
| 5.5 | 5.62 | 5. 38 | 11 | 10.4 | 3. 05 | 2. 75 | 1.6 | 1.4 | 1.55 | 1.05 |
| 5.8 | 5. 92 | 5. 68 | 11.6 | 10.9 | 3.2 | 2.8 | 1.85 | 1.6 | 1.65 | 1.15 |
| 6.2 | 6. 32 | 6. 08 | 12.4 | 11.7 | 3.5 | 3.1 | 1.85 | 1.6 | 1.8 | 1.2 |
| 6.8 | 6. 95 | 6.65 | 13.6 | 12.9 | 3.8 | 3.4 | 1.85 | 1.6 | 1.9 | 1.3 |
| 7.5 | 7.65 | 7. 35 | 15 | 14.3 | 4.15 | 3. 75 | 2. 05 | 1.8 | 2.15 | 1.45 |
| 8 | 8.15 | 7. 85 | 16 | 15.2 | 4.4 | 4 | 2. 05 | 1.8 | 2. 25 | 1.55 |
| 9.5 | 9. 65 | 9. 35 | 19 | 18.2 | 5.15 | 4. 75 | 2.3 | 2 | 2.6 | 1.8 |

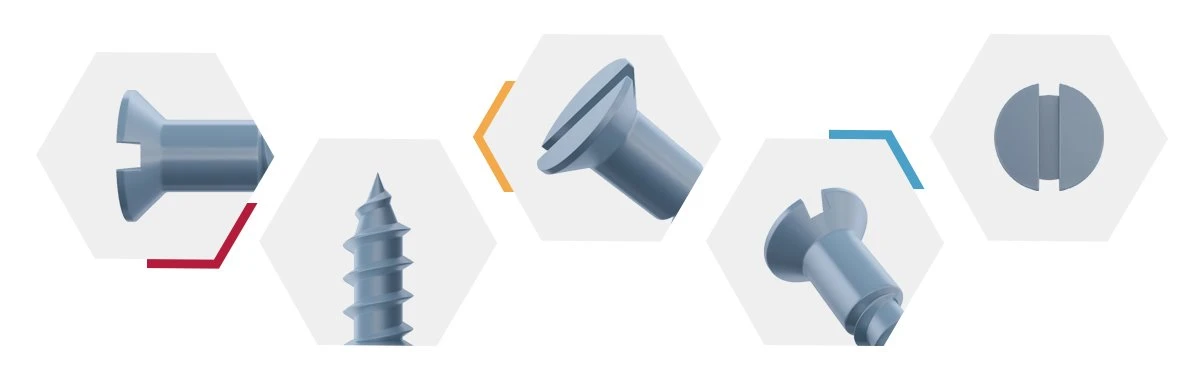

PRODUCT DETAILS
PRODUCT ADVANTAGES
ADVANTAGES OF Flat Wood Screws
1. The flat wood screws are the screws normally for the connections between wooden items.
2. It can be applied quickly and easily with basic screw tools.
3. It's made from approved steel sources to make sure the final high-standard quality.
4. Multiple surface treatment choices are available to meet different requirements.
5. AYA has one specialist research laboratory for top-quality screening as well as brand-new items advancements.
6 . AYA has Five self-owned mills to satisfy your types of fastening solutions.
QUALITY INSPECTION
PACKAGING & CONTAINER LOADING
USAGE SCENARIOS
WHY CHOOSE AYA?
