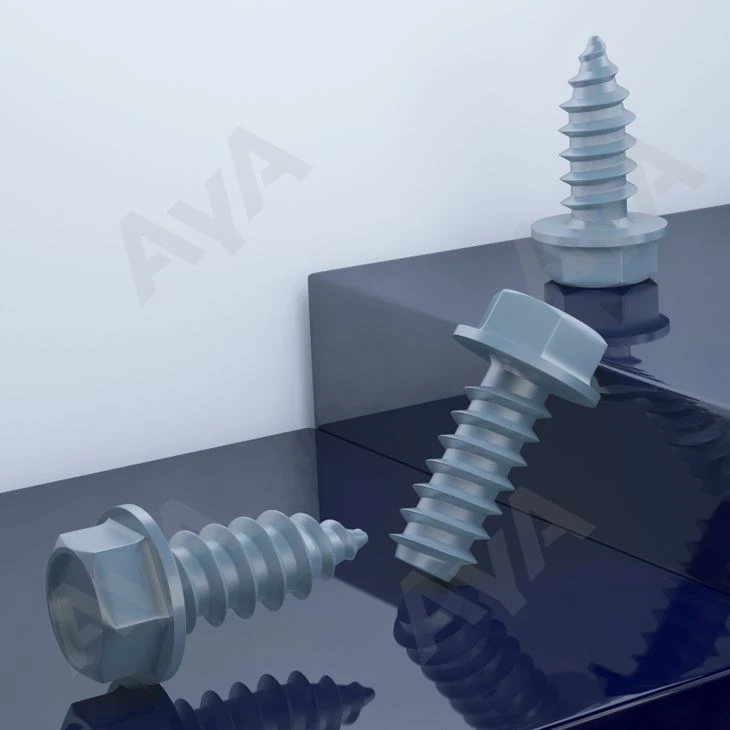

Hex Washer Head Sheet Metal Screws

Standard: ANSI/ASME B 18.6.3
Thread Type: Self-Tapping Screw Thread
Commodity: Hex Washer Head Sheet Metal Screws
Also Named: Hex Washer Screw
Material: Carbon Steel
Property Class: 4.8-12.9
Diameter: #2、#3、#4、#5、#6、#7、#8、#10、#12、#14、1/4、5/16、#20、#24、3/8、7/16、1/2
Finish: Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type: Hexagon Washer Head
Drive Type: Outer Hex
Form/Shape Of Tip: Type AB/B/BP/C/A
Alternative Standard: ASME B 18.6.4、ANSI/ASME B 18.6.5M
MOQ: 1000kgs
Lead Time: 30 to 60 days

Send Inquiry

Product Introduction

AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of hex washer head sheet metal screws in China. Please feel free to buy high quality hex washer head sheet metal screws made in China here from our factory. For price consultation, contact us.

Hex Washer Head Sheet Metal Screws-AYA

As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.

Product Description

Product Name	Hex Washer Head Sheet Metal Screws
Also Named	Hex Washer Screw
Material	Carbon Steel
Standard	ANSI/ASME B 18.6.3
Property Class	4.8-12.9
Diameter	#2、#3、#4、#5、#6、#7、#8、#10、#12、#14、1/4、5/16、#20、#24、3/8、7/16、1/2
Finish	Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Thread Type	Self-Tapping Screw Thread
Head Type	Hexagon Washer Head
Drive Type	Outer Hex
Form/Shape Of Tip	Type AB/B/BP/C/A

Dimensions Table

Hex Washer Head Sheet Metal Screws-2D

Thread Size d	s		e	dc		h		k
Thread Size d	max	min	min	max	min	max	min	max	min
#2	0.125	0.120	0.134	0.166	0.154	0.016	0.010	0.050	0.040
#3	0.188	0.181	0.202	0.177	0.153	0.016	0.010	0.055	0.044
#4	0.188	0.181	0.202	0.243	0.225	0.019	0.011	0.060	0.049
#5	0.188	0.181	0.202	0.260	0.240	0.025	0.015	0.070	0.058
#6	0.250	0.244	0.272	0.328	0.302	0.025	0.015	0.093	0.080
#7	0.250	0.244	0.272	0.328	0.302	0.029	0.017	0.093	0.080
#8	0.250	0.244	0.272	0.348	0.322	0.031	0.019	0.110	0.096
#10	0.312	0.305	0.340	0.414	0.384	0.031	0.019	0.120	0.105
#12	0.312	0.305	0.340	0.432	0.398	0.039	0.022	0.155	0.139
#14	0.375	0.367	0.409	0.520	0.480	0.050	0.030	0.190	0.172
1/4	0.375	0.367	0.409	0.520	0.480	0.050	0.030	0.190	0.172
5/16	0.500	0.489	0.545	0.676	0.624	0.055	0.035	0.230	0.208
#20	0.500	0.489	0.545	0.676	0.624	0.055	0.035	0.23	0.208
#24	0.562	0.551	0.614	0.780	0.72	0.063	0.037	0.295	0.27
3/8	0.562	0.551	0.614	0.780	0.72	0.063	0.037	0.295	0.27
7/16	0.625	0.61	0.682	0.870	0.79	0.073	0.043	0.348	0.321
1/2	0.750	0.735	0.82	1.040	0.96	0.085	0.05	0.4	0.367

Product Details

Hex Washer Head Sheet Metal Screws-detail

Product Advantages

Hex Washer Head Sheet Metal Screws-advantages

Advantages Of Hex Washer Head Self Tapping Screws

1. Quality steel for lasting dependability.

2. Zinc finish for extensive deterioration resistance.

3. The integration of washer and screw shortens the time to install washers.

4. Big level bearing surface area for extra tons ability.

5. Five self-owned mills and hundreds of selected mills provide you a one-stop fasteners solution.

6. Over 50 technicians support you with high-standard customization service.

Quality Inspection

Hex Washer Head Sheet Metal Screws-check

Every link in the production will be supervised by quality control personnel to ensure that the final product meets customer expectations.

Sophisticated testing instruments and experienced quality control personnel can provide customers with more accurate quality inspection reports.

Packaging & Container Loading

Hex Washer Head Sheet Metal Screws-package

AYA's product packaging can not only provide very good protection to the product, but also improve the beauty of the product.

AYA provides custom labeling services.

Usage Scenarios

Hex Washer Head Sheet Metal Screws-usage

Why Choose AYA?

AYA-advantage

AYA provides exclusive services to 1000+ members from all over the world every year, with a unique chain service solution system, you only need to click the mouse to get exclusive fastening solution and enjoy door-to-door services.
