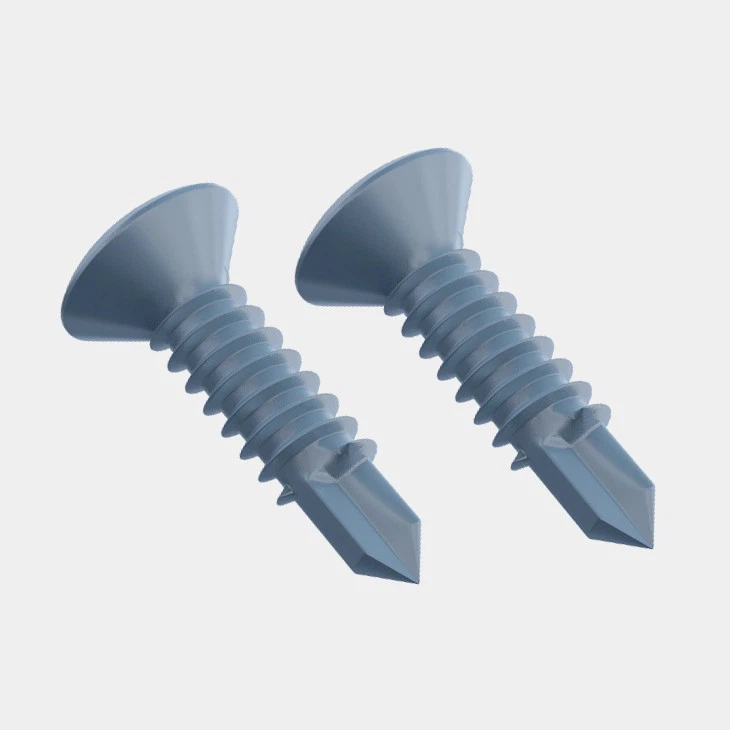

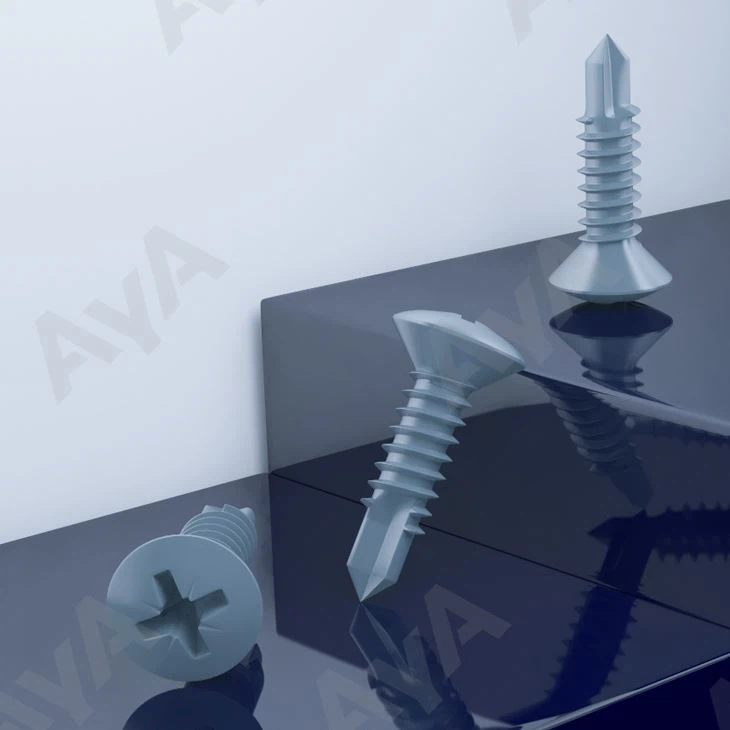

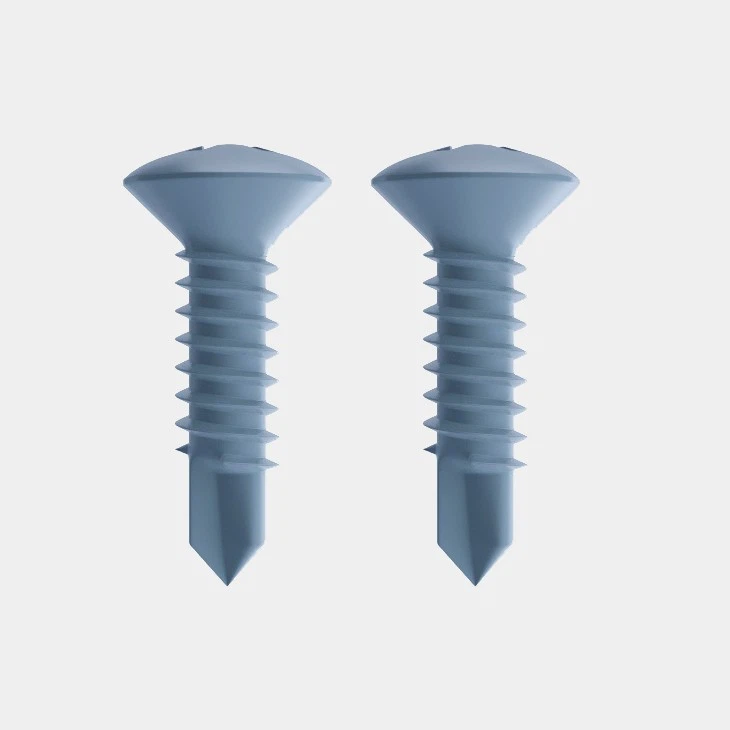

Carbon Steel Self Drilling Screws
Standard: ISO 15483
Thread Type: Self-Tapping Screw Thread
Commodity: Carbon Steel Self Drilling Screws
Also Named: Self Drilling Machine Screws
Material: Carbons Steel
Property Class: A
Diameter: ST2.9×1、ST3.5×2、ST4.2×2、ST4.8×2、ST5.5×3、ST6.3×3
Finish: Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type: Raised Countersunk Head / Oval Head
Drive Type: Cross Drive
Alternative Standard: DIN 7504 (R), DIN 7504 (Q), JIS B 1124
MOQ: 1000kgs
Lead Time: 30 to 60 days
Product Introduction
AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of carbon steel self drilling screws in China. Please feel free to buy high quality carbon steel self drilling screws made in China here from our factory. For price consultation, contact us.
As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.
PRODUCT DESCRIPTION
Product Name | Carbon Steel Self Drilling Screws |
Also Named | Self Drilling Machine Screws |
Material | Carbon Steel |
Standard | ISO 15483 |
Property Class | A |
Diameter | ST2.9×1、ST3.5×2、ST4.2×2、ST4.8×2、ST5.5×3、ST6.3×3 |
Finish | Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated |
Head Type | Raised Countersunk Head / Oval Head |
Drive Type | Cross Drive |
Thread Type | Self-Tapping Screw Thread |
| Alternative Standard | DIN 7504 (R), DIN 7504 (Q), JIS B 112 |

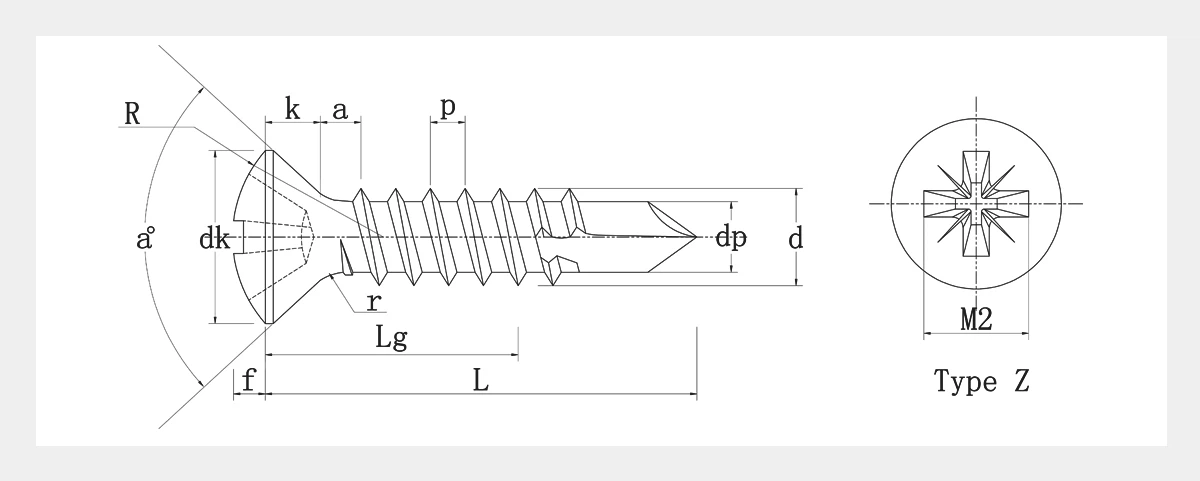

DIMENSIONS TABLE
| Screw Thread d | ST2.9 | ST3.5 | ST4.2 | ST4.8 | ST5.5 | ST6.3 | ||
| P | Pitch | 1.1 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 | |
| dk | max | 5.5 | 7.3 | 8.4 | 9.3 | 10.3 | 11.3 | |
| min | 5.2 | 6.9 | 8 | 8.9 | 9.9 | 10.9 | ||
| k | max | 1.7 | 2.35 | 2.6 | 2.8 | 3 | 3.15 | |
| Socket No. | 1 | 2 | 2 | 2 | 3 | 3 | ||
| Penetration depth | Drilling Range(Sheet or Plate Thickness) | min | 0.7 | 0.7 | 1.75 | 1.75 | 1.75 | 2 |
| max | 1.9 | 2.25 | 3 | 4.4 | 5.25 | 6 | ||
PRODUCT DETAILS
PRODUCT ADVANTAGES
ADVANTAGES OF Carbon Steel Self Drilling Screws
1. The carbon steel provides high strength and toughness to the screws. Thus, there is no issue with the durability of these fasteners.
2. These carbon steel screws are available at the most reasonable rate. But they have a wide range of capabilities due to their unique mechanical properties.
3. As they have a self-drilling potential, they do not cause damage to your surface. The worksite will have no mess because you can avoid pre-drilling.
4. You can easily fasten any type of material.
5. AYA ensures the shortest delivery time for your carbon steel screws.
6. Our overseas warehouse enables us to deliver the products to different countries.
QUALITY INSPECTION
PACKAGING & CONTAINER LOADING
USAGE SCENARIOS
WHY CHOOSE AYA?
AYA provides exclusive services to 1000+ members from all over the world every year, with a unique chain service solution system, you only need to click the mouse to get exclusive fastening solution and enjoy door-to-door services.
Hot Tags: carbon steel self drilling screws, China, suppliers, manufacturers, factory, buy, price, for sale, made in China, countersunk self-drilling metal screws, white self drilling screws, countersunk self drilling metal screws, galvanized tek screws, round head self drilling screw, wafer head self drilling drywall screws
