Black Flange Bolts

Standard: DIN 6922
Thread Type: Coarse Thread / Partial Thread
Commodity: Black Flange Bolts
Also Named: Hexagon Bolts With Flange
Material: Carbon Steel
Property Class: 8.8, 10.9, 12.9
Diameter: M5×0.8, M6×1, M8×1.25, M8×1, M10×1.5, M10×1.25, M10×1, M12×1.75, M12×1.5, M12×1.25, M14×2, M14×1.5, M16×2, M16×1.5, M20×2.5, M20×1.5
Finish: Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type: Hexagon Head
Drive Type: External Hex
MOQ: 1000kgs
Lead Time: 30 to 60 days

Send Inquiry

Product Introduction

AYA Fasteners (Hebei) Co., Ltd. is one of the most experienced manufacturers and suppliers of black flange bolts in China. Please feel free to buy high quality black flange bolts made in China here from our factory. For price consultation, contact us.

Black Flange Bolts AYA

As a global supplier of customized fastening solutions, AYA's service process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.

PRODUCT DESCRIPTION

Product Name	Black Flange Bolts
Also Named	Hexagon Bolts With Flange
Material	Carbon Steel
Standard	ASME B18.2.1
Property Class	8.8, 10.9, 12.9
Diameter	M5×0.8, M6×1, M8×1.25, M8×1, M10×1.5, M10×1.25, M10×1, M12×1.75, M12×1.5, M12×1.25, M14×2, M14×1.5, M16×2, M16×1.5, M20×2.5, M20×1.5
Finish	Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type	Hexagon Head
Drive Type	External Hex
Thread Type	Coarse Thread / Partial Thread

DIMENSIONS TABLE

Black Flange Bolts AYA

Thread Size		M5	M6	M8	M8	M10	M10	M10	M12
d		×0.8	×1	×1.25	×1	×1.5	×1.25	×1	×1.75
b	L≤125	16	18	22	22	26	26	26	30
	125＜L≤200	/	/	28	28	32	32	32	36
	L＞200	/	/	/	/	/	/	/	/
c	min	1	1.1	1.2	1.2	1.5	1.5	1.5	1.8
dc	max	11.8	14.2	18	18	22.3	22.3	22.3	26.6
ds	max	5	6	8	8	10	10	10	12
ds	min	4.82	5.82	7.78	7.78	9.78	9.78	9.78	11.73
e	min	8.71	10.95	14.26	14.26	16.5	16.5	16.5	17.62
k	max	5.4	6.6	8.1	8.1	9.2	9.2	9.2	11.5
s	max	8	10	13	13	15	15	15	16
s	min	7.78	9.78	12.73	12.73	14.73	14.73	14.73	15.73
Thread Size		M12	M12	M14	M14	M16	M16	M20	M20
d		×1.5	×1.25	×2	×1.5	×2	×1.5	×2.5	×1.5
b	L≤125	30	30	34	34	38	38	46	46
	125＜L≤200	36	36	40	40	44	44	52	52
	L＞200	/	/	/	/	57	57	65	65
c	min	1.8	1.8	2.1	2.1	2.4	2.4	3	3
dc	max	26.6	26.6	30.5	30.5	35	35	43	43
ds	max	12	12	14	14	16	16	20	20
ds	min	11.73	11.73	13.73	13.73	15.73	15.73	19.67	19.67
e	min	17.62	17.62	19.86	19.86	23.15	23.15	29.87	29.87
k	max	11.5	11.5	12.8	12.8	14.4	14.4	17.1	17.1
s	max	16	16	18	18	21	21	27	27
s	min	15.73	15.73	17.73	17.73	20.67	20.67	26.67	26.67

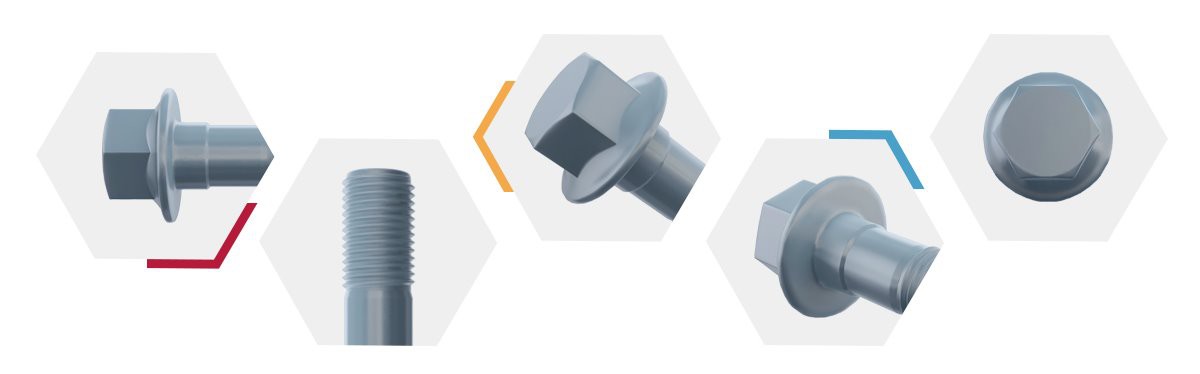

PRODUCT DETAILS

Black Flange Bolts AYA

PRODUCT ADVANTAGES

Black Flange Bolts AYA

ADVANTAGES OF Black Flange Bolts

1.Black oxide flange bolts has a more economical than other popular surface treatment like the galvanizing.

2.It has a special look compared to the various other galvanizing kind to match the utilizing atmospheres.

3. It does not need an additional washers between head and the things linked.

4. With the flange kind, it can use a terrific quantity of torque for strong attachments.

5. AYA has a total QC system including specialist and knowledgeable assessors.

6. AYA has actually designed over 100 new fasteners for our global customers in the last years.
